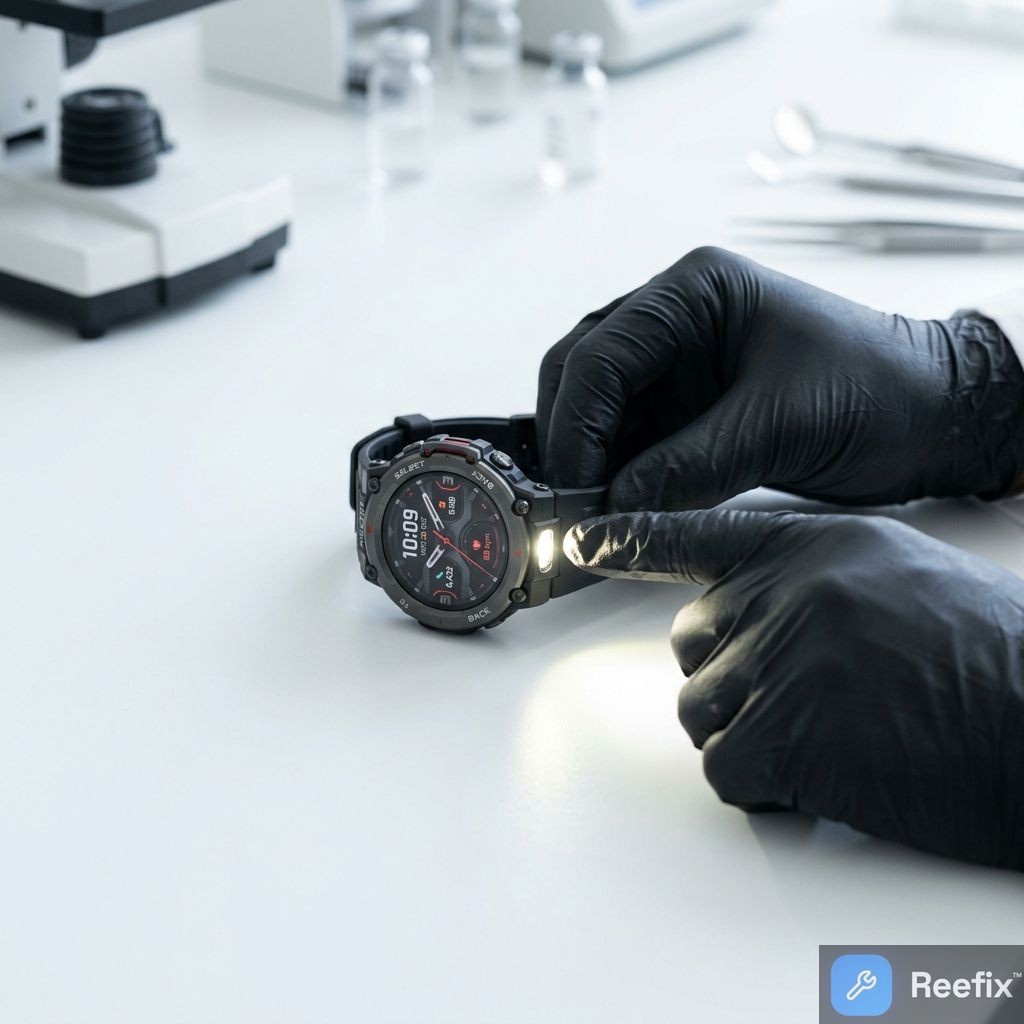

Amazfit T-Rex 3 Pro: LED Flashlight Not Working - Diagnosis

⚠️ SAFETY WARNING / FIRE RISK. This device contains lithium batteries. Improper puncturing or bending during disassembly can cause explosions or flames. The intervention requires precision and the assistance of a specialized technician is recommended. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

TYPICAL ERROR

The LED flashlight of your Amazfit T-Rex 3 Pro does not turn on, neither by prolonged pressing of the "UP" button nor from the Zepp OS software interface. This anomaly indicates a hardware malfunction or a persistent blockage of the control system.

The most probable causes, in order of frequency, are:

1. Damage or disconnection of the flat flexible cable (FPC) (45%): This often happens after an impact, a fall, or strong vibrations (e.g., during intense sports activities). The flat cable that powers the LED is extremely thin and delicate; a micro-tear or the detachment of its connector from the motherboard can interrupt the circuit.
2. Moisture infiltration and contact oxidation (30%): Despite 10 ATM certification, prolonged exposure to thermal shocks, aggressive waters (chlorine, salt), or chemical agents can degrade the seals. Internal moisture causes galvanic corrosion on the LED pins or the connector, blocking current flow.
3. Failure of the driving circuit (Driver IC) on the mainboard (15%): Less common, but possible. The chip that regulates current to the LED might have been damaged due to a voltage spike, for example, by using a non-original or faulty charger. In this scenario, the LED is intact but does not receive correct power.
4. Minor causes (Persistent firmware bug or LED diode breakage) (10%): A very rare software bug that resists resets or, finally, the structural failure of the LED diode itself due to thermal degradation, especially if used for a long time at high intensity in hot environments.

HOW TO FIX

For an accurate evaluation and possible intervention, proceed in phases:

1. Preliminary user checks:

• Battery status: Make sure the device has sufficient charge (at least 20-30%). Some smartwatches deactivate secondary functions with low battery.
• Forced restart: Perform a complete restart of your Amazfit T-Rex 3 Pro. Sometimes, a simple temporary software lock can be resolved this way.
• Firmware update/Factory reset: If you haven't already, check the latest firmware version via the Zepp app and, if available, update. If the problem persists, a complete factory data reset (with prior backup) can definitively rule out a software conflict. If the flashlight still doesn't work after these checks, the problem is almost certainly hardware.

2. Specialized technical intervention: Given the complexity of the device, its waterproofing, and the presence of a lithium battery, DIY repair is strongly discouraged. A professional technician will proceed with instrumental diagnosis:

• External visual inspection: Analysis of the LED area and the casing for signs of impact, cracks, or traces of moisture/condensation.
• Controlled opening: Use of a precision electronics tool kit to access the interior without damaging components or compromising sealing.
• FPC integrity verification: Inspection of the LED's flat connection cable to the motherboard to identify micro-fractures or disconnections, testing continuity with a precision digital multimeter.
• LED driver voltage measurement: During a power-on command, the output voltage from the driving circuit on the mainboard is checked.
• Direct LED diode test: The diode is externally powered to verify its intrinsic functionality.
• Oxidation search: Microscopic inspection for traces of corrosion on contacts, which could be cleaned with 99% isopropyl alcohol.
• Waterproofing restoration: In case of internal repair, the technician will need to restore the sealing with a waterproof sealing adhesive like B-7000 or similar products.

FINAL VERIFICATION

After ruling out software causes with preliminary checks, the fault is almost certainly internal hardware.

Considering the high probability of flat cable damage (45%) or moisture infiltration (30%), and the delicacy of the device, the operational decision is as follows:

1. Consult a technician: This is the most sensible and safest choice. A professional can accurately diagnose the cause and attempt a repair (e.g., FPC cable restoration or oxide cleaning) while preserving the integrity and waterproofing of your Amazfit T-Rex 3 Pro.
2. Replace the device: If the technician diagnoses a failure of the driving circuit (Driver IC) or the LED diode itself, and the estimated repair cost (parts + specialized labor to restore waterproofing) approaches or exceeds 50-70% of the value of a new Amazfit T-Rex 3 Pro, replacing the device becomes the most economically convenient option.
3. Repair yourself: Strongly discouraged. The risk of damaging the lithium battery, irreversibly compromising the device's waterproofing, or causing other failures is extremely high without specific equipment and expertise.
