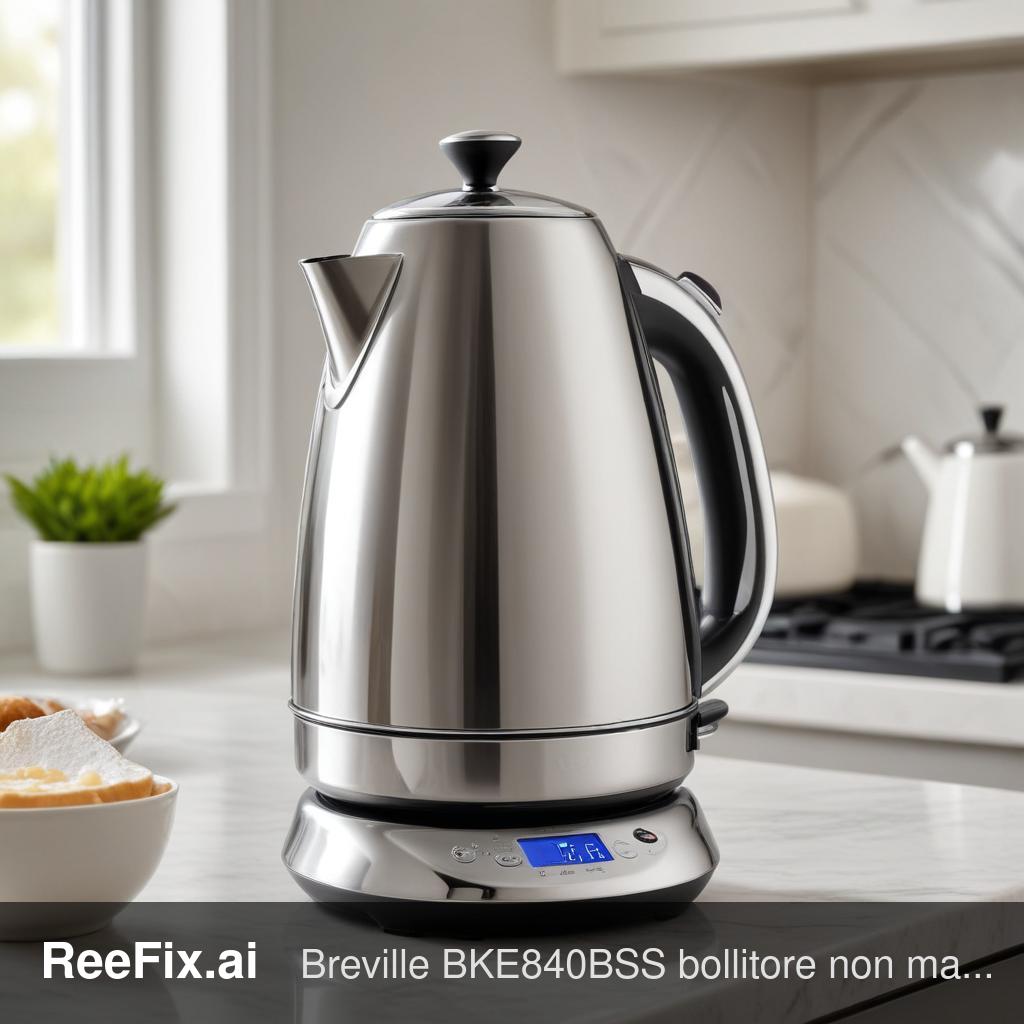

Breville BKE840BSS: Temperature Hold Diagnosis

⚠️ SAFETY WARNING. This appliance is connected to the mains electricity. It is essential to always unplug it before any disassembly. If the physical intervention is complex and for your safety, it is recommended to rely on a qualified technician. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

Why doesn't my Breville BKE840BSS kettle maintain temperature?

Your Breville BKE840BSS (Smart Kettle) has a precise electronic control system. If it doesn't maintain the set temperature, fluctuates, or switches off too early, the problem is almost always related to an interruption or instability in the "chain" that detects and manages heat.

Causes and Probabilities:

1. Limescale on the heating plate (High probability, 45-55%): This is the most common cause. Limescale insulates the heating element and confines heat near the sensor. This causes the sensor to detect a higher temperature than the actual water temperature, switching off the kettle prematurely or causing it to cycle on and off.
2. Dirty/oxidized 360° connector contacts (Medium-High probability, 25-30%): The connector between the carafe and the base not only carries current but also the sensor signal. Dirt or oxidation increases contact resistance, falsifying temperature readings and destabilizing control.
3. Defective NTC sensor (Medium probability, 15-20%): The NTC thermistor, which detects temperature, can age or suffer from infiltration. If its resistance values are no longer precise, the microcontroller receives incorrect data, causing abnormal shutdowns or failure to reach temperature.
4. X2 power capacitor on the logic board (Low probability, 5-10%): This component, if worn, loses capacitance. When the relay activates to heat, the voltage on the board can drop sharply, causing the electronics to reset or the relay to switch off. This is more frequent after years of intense use.

What checks can I do immediately?

Before considering complex disassemblies, there are two quick and safe checks you can do yourself:

1. Complete descaling: Remove all limescale from the internal heating plate. You can use a solution of water and powdered citric acid (e.g., Citric acid descaler for kettles). Boil and let it act for 15-30 minutes, then rinse thoroughly.
   • Key signs: If the kettle switches off when the water is not yet boiling, or the temperature button LEDs flash abnormally, limescale is a strong suspect.
2. Clean base contacts: Unplug the kettle from the outlet. Inspect the metal contacts of the 360° connector on both the base and under the carafe. Look for dirt or oxidation. Clean gently with a dry cloth or, if you are familiar, with an Electrical contact cleaner deoxidizer (make sure it is completely dry before reconnecting).
   • Typical error: Many users neglect cleaning these contacts, thinking they are only for power. Instead, they are vital for sensor communication.

When is a specialized technician needed?

If the above checks do not resolve the problem, it is very likely that the fault is electronic in nature and requires the intervention of a professional.

Checks for the technician:

• NTC sensor measurement: The technician will use a professional digital multimeter to measure the resistance of the NTC sensor at different temperatures. If the values are out of specification or unstable, the sensor (NTC temperature sensor for Breville BKE840BSS kettle) will need to be replaced.
• Electronic board diagnosis: The stability of the board's power supply will be checked, particularly the capacitance of the X2 safety capacitor for electronic boards and the integrity of the power relay. These interventions require soldering and specific skills.
  • Output for technician: "The Breville BKE840BSS kettle has temperature hold issues. Check NTC thermistor for drift, 360° connector contacts for parasitic resistance, and logic board power supply stability (X2 capacitor and relay) during excitation."

Is it worth repairing or replacing the kettle?

The decision depends on the cost of the repair compared to the value of a new Breville BKE840BSS kettle (which can range from 80 to 120 euros).

• DIY repair (Recommended for initial checks):
  • Cost: Low (Citric acid: 5-10€, Contact cleaner: 10-20€).
  • Probability of success: High if the problem is limescale or dirt on the contacts.
• Repair with technician:
  • Cost: Variable, from 40-70€ (for sensor or capacitor + labor) up to 90-120€ if the board has more complex problems or the relay needs replacement. Labor alone for opening and diagnosis can start from 30-50€.
  • Consideration: If the cost approaches or exceeds 2/3 of the price of a new kettle, replacement is often the most sensible option. The availability of specific Breville spare parts can affect cost and timing.
• Replace the device (Recommended if initial checks fail and repair cost is high):
  • If the problem persists after your checks and the technician's quote is high (e.g., >70-80€), or if the device is very old and has other signs of wear, purchasing a new Breville BKE840BSS is the most economical and durable choice.

Operational conclusion: Always start with descaling and cleaning the contacts (high probability of success, low cost). If the problem persists, contact a technician for an in-depth diagnosis of the NTC sensor and the electronic board. Consider replacement if the repair quote exceeds 70-80€.
