Diagnosis of the Fisher & Paykel RF610ADUX5 Refrigerator's Stuck Ice Maker Arm

WARNING: ELECTRICAL HAZARD. This appliance operates with high voltage or residual charges. Physical intervention is extremely dangerous, and it is strongly recommended to entrust it to a qualified specialized technician to avoid electric shocks. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

Why is the Ice Maker Arm Stuck?

Your Fisher & Paykel RF610ADUX5 ice maker arm not completing its cycle indicates an interruption in the production process. Here are the most probable causes:

• Suboptimal Freezer Temperature (35-45%): The freezer does not maintain a constant temperature below -12°C (10°F). Ice does not form correctly or partially melts and refreezes, blocking the arm mechanism. Often, a faulty Refrigerator Thermistor prevents the ice maker from knowing when the ice is ready.
• Physical Obstruction (25-30%): Excessive ice buildup in the mold or around the ejector arm, or a foreign object (e.g., a piece of packaging) falling into the compartment. The arm cannot move freely. This often happens when small amounts of water drip and freeze in unwanted areas.
• Mechanical Failure or ice maker motor (15-20%): The motor that drives the arm or the internal gears of the Fisher & Paykel RF610ADUX5 Ice Maker Assembly are worn, blocked, or faulty. This prevents the arm from completing its rotation.
• Dirty or Faulty Optical Sensors (10%): The sensors that detect the ice level in the bin might be dirty, misaligned, or faulty. If they believe the bin is full, the ice maker stops cycling.
• Defrost Heater Failure (Low): If the Refrigerator Defrost Heater does not work, ice sticks to the mold, and the arm encounters too much resistance.

What can I check immediately?

Before calling a technician, you can perform some quick and safe checks:

1. Ice Maker Reset: Unplug the refrigerator for 5 minutes, then plug it back in. This can resolve minor electronic glitches or unblock the cycle.
2. Freezer Temperature Check: Verify that the freezer temperature is set correctly (ideally -18°C) and that food is indeed well frozen. If the temperature is too high, the problem is deeper.

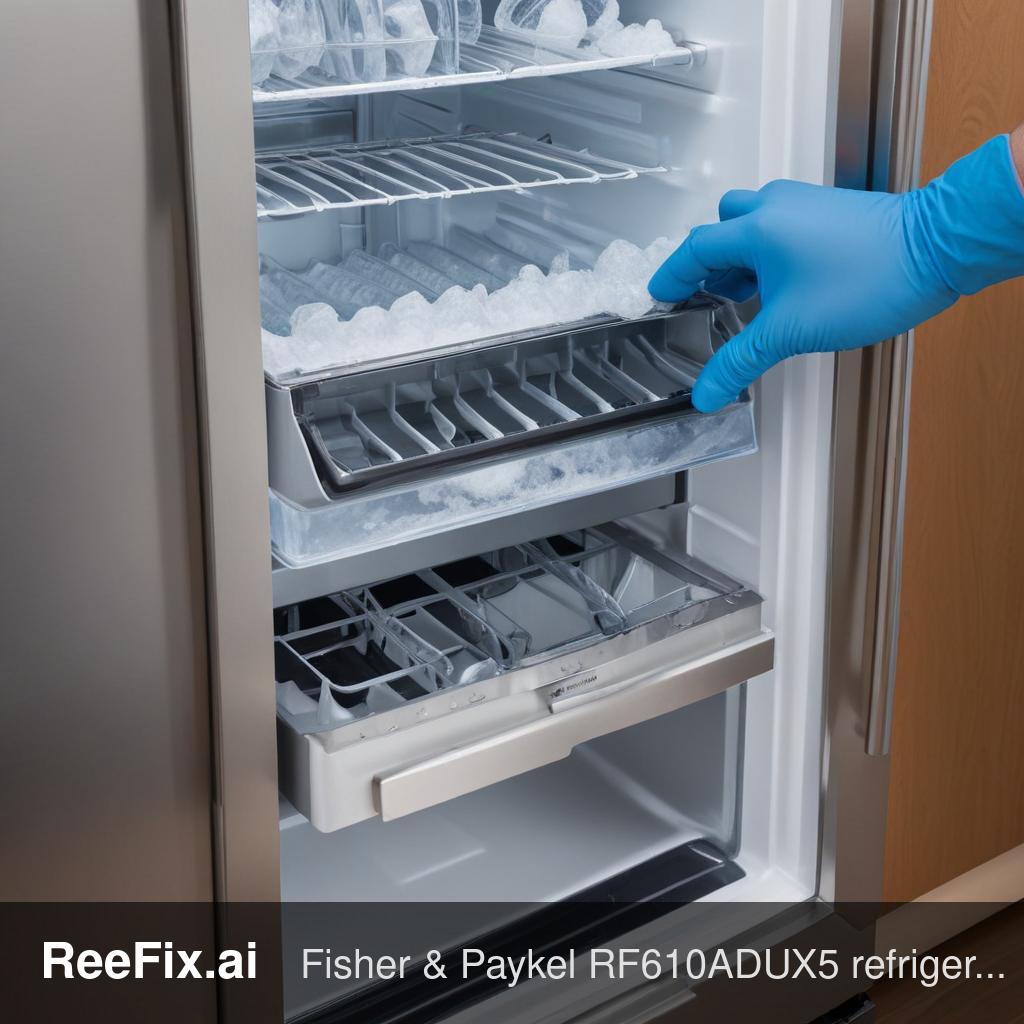

3. Obstruction Check: Remove the ice bin. Look for excessive ice buildup, blockages, or foreign objects around the ejector arm or in the mold. Gently remove any obstruction with a warm cloth or, if necessary, defrost the ice maker.
4. Bin Positioning: Ensure the ice bin is correctly inserted under the ice maker. Incorrect positioning can prevent the cycle.

When should you call a technician?

Contact a professional if:

• The quick checks do not resolve the problem.
• You hear unusual noises (humming, clicking, grinding) coming from the ice maker, but the arm does not move.
• The freezer does not cool sufficiently, or you notice temperature fluctuations.
• No water is produced in the ice mold, indicating a potential problem with the Refrigerator Water Inlet Valve or the water line.
• It is necessary to test electrical components such as the thermistor, defrost heater, or ice maker motor with a Digital Multimeter.

Technician Output: "Fisher & Paykel RF610ADUX5 ice maker with a stuck arm, not completing the ejection cycle. Reset and compartment cleaning performed without success. No obvious abnormal noises, but the arm remains immobile. Suspect failure of the ice maker motor, thermistor, or defrost heater, or a water supply issue."

Repair or Replace?

The decision depends on the cost of repair versus the appliance's residual value.

• Repair Yourself (if possible): If the problem is a trivial obstruction or a successful reset, the cost is 0€. This is the only scenario recommended for DIY.
• Repair by Technician:
  • Parts cost (excluding labor):
    • Refrigerator Thermistor: Low
    • Refrigerator Water Inlet Valve: Medium-low
    • Refrigerator Defrost Heater: Medium
    • Fisher & Paykel RF610ADUX5 Ice Maker Assembly: High
  • Estimated total cost (parts + labor): Generally between 150€ and 350€, depending on the component to be replaced and the technician's rate.
• Replace the Device: If the refrigerator is more than 8-10 years old, has other defects, or the estimated repair cost exceeds 50% of the value of a new equivalent appliance, replacement might be more cost-effective in the long run.

If a reset or the removal of an obvious obstruction does not resolve the problem, contact a technician; DIY repair is not recommended for complex internal failures.
