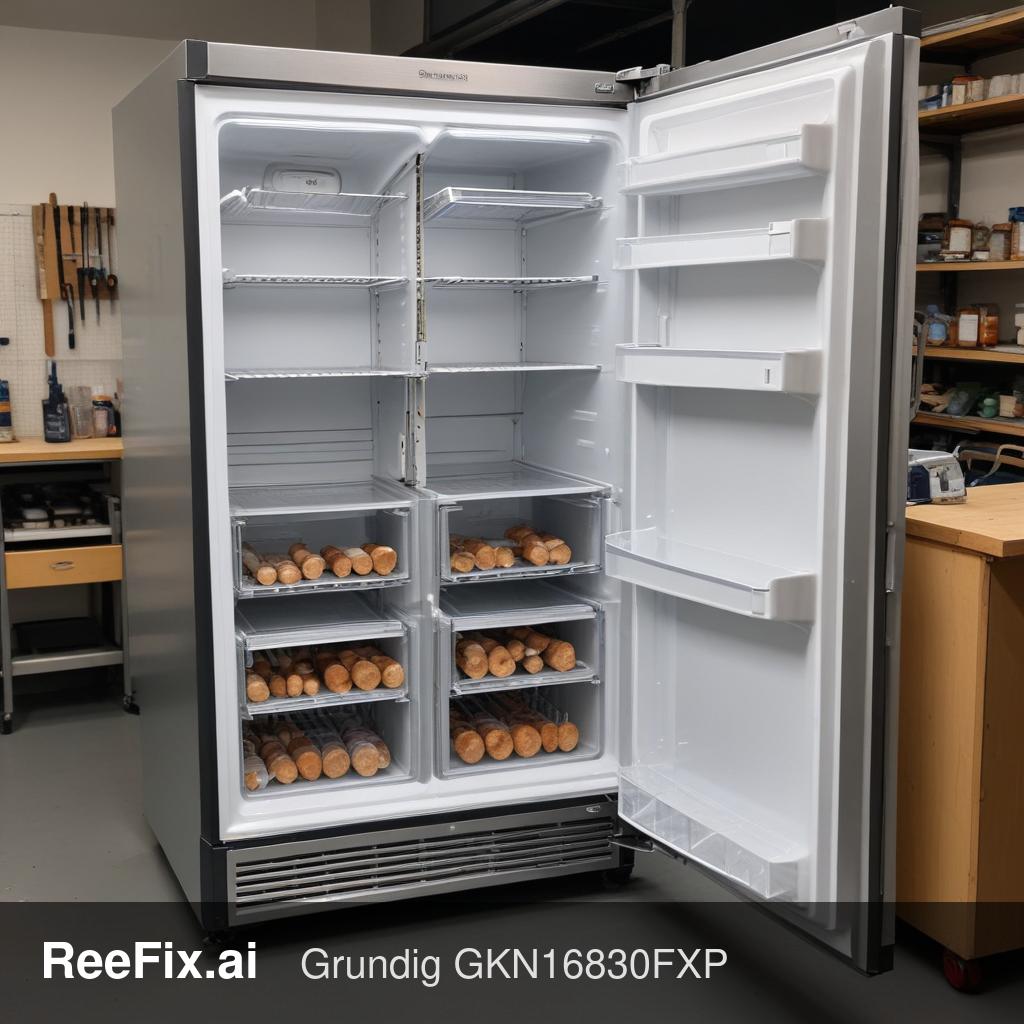

Grundig GKN16830FXP Refrigerator: E8 Error and Ice in Freezer

SAFETY WARNING / ELECTRICAL RISK. This appliance operates at 230V. Before any inspection or physical intervention, always unplug the appliance from the power outlet or deactivate the dedicated general circuit breaker. Working on internal electrical components involves risks of electric shock and must be performed exclusively by a qualified technician. ReeFix provides this diagnosis for informational purposes only.

TECHNICAL CHECKLIST

If your Grundig GKN16830FXP refrigerator shows an E8 error and you notice ice buildup in the freezer, there is a precise technical explanation. In Grundig/Beko group refrigerators, E8 error specifically indicates a fault in the ice maker (Icematic) temperature sensor.

The presence of ice in the freezer is the triggering cause: when the No-Frost system does not work correctly, ice buildup engulfs the Icematic unit, blocking its mechanical movement or damaging the thin sensor wiring that runs directly under the tray.

Here are the steps to diagnose and solve the problem in order of probability:

1. Complete manual defrosting

   • Action: Unplug the refrigerator from the power outlet for at least 24-48 hours, leaving the doors completely open. Make sure all the ice in the freezer melts, especially that accumulated behind the rear panel.
   • Why: Completely removing the ice is essential to free the Icematic and check if the E8 error is due to a temporary physical blockage or permanent damage to the sensor. If the error disappears after restarting, the problem was temporary. If the error persists or ice reforms after a few days, the cause is electrical.
   • Probability: Very high (70%) as a first remedial action.
   • Cost: 0€.
   • Operational decision: Simple operation you can perform independently.

2. Inspection of Icematic wiring and sensor

   • Action: With the appliance unplugged, a technician (or an experienced user) must disassemble the ice maker unit to inspect the NTC sensor and its wiring. Often the ice breaks the connecting wires. If the wires are intact, measure the sensor's resistance with a multimeter (it should be around 10 kOhm at room temperature).
   • Why: If the wiring is interrupted or the sensor is short-circuited, the electronic board does not receive the correct signal and displays the E8 error.
   • Probability: Medium (20%) that the sensor or its wiring are physically damaged by ice.
   • Replacement cost: The original sensor costs about 15-40€. If the wire is only broken, a technician can repair it by re-soldering and insulating it with heat-shrink tubing at almost no cost.
   • Operational decision: Requires technical skill and the use of a multimeter; professional intervention is recommended.

3. Check the evaporator fan and No-Frost defrosting system

   • Action: If ice reforms quickly after defrosting, the technician will need to check the components of the No-Frost system: the defrost heater, the safety thermal fuse, and the evaporator fan. The fan must spin freely and receive correct power.
   • Why: If the evaporator fan is blocked or the defrost heater is burned out, moisture is not removed and quickly turns into an ice block that eventually compromises the Icematic. If the fan is damaged, you can find a compatible evaporator fan for Grundig GKN16830FXP on eBay to restore proper airflow.
   • Probability: Low/Medium (10%) as an indirect primary cause of the E8 error.
   • Replacement cost: The fan costs about 30-60€, while defrosting components (heater or thermal fuse) range between 15€ and 70€.
   • Operational decision: Complex diagnosis requiring the intervention of a qualified technician.

COST SUMMARY AND OPERATIONAL DECISION

• Manual defrosting (DIY): 0€
• Wiring repair or Icematic sensor replacement: 15-40€ (part) + 60-100€ (technician labor).
• Fan or No-Frost component replacement: 30-70€ (part) + 60-100€ (technician labor).

Is it worth repairing or replacing? Repairing the Grundig GKN16830FXP refrigerator is highly recommended and cost-effective. As a mid-to-high-end No-Frost appliance, the total cost of a professional intervention (estimated between 80€ and 180€ depending on the faulty component) is significantly lower than purchasing a new equivalent refrigerator. Before calling a technician, always perform a complete 48-hour defrost: in many cases, this definitively solves the problem without any expense.
