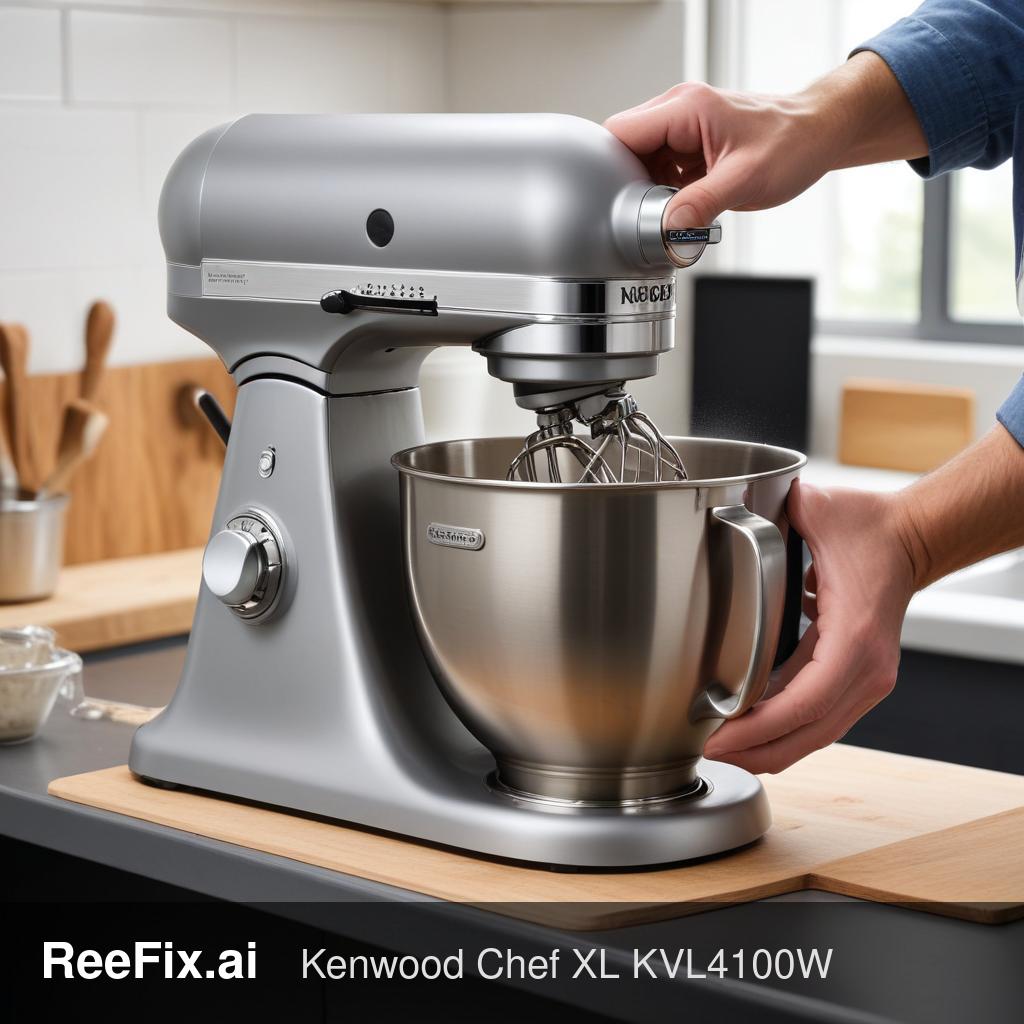

Kenwood Chef XL KVL4100W: Bowl Not Locking - Diagnosis and Solution

⚠️ SAFETY WARNING. This appliance is connected to the 230V mains. It is mandatory to always unplug the appliance before any inspection or disassembly. Beware of mechanical risk: when unlocking the mixer head, the hinge springs can cause it to snap upwards abruptly. If internal intervention is complex, it is recommended to rely on a qualified technician. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

CAUSE A: Wear of the Locking Plate or Bowl Base

Probability: 63% (High) Why it happens: The Kenwood Chef XL KVL4100W uses a rotational locking system. Repeated use, especially with very stiff doughs (like bread or pizza) or forced insertion, leads to wear of the plastic/rubber base plate located on the mixer's pedestal, or deformation of the metal pins on the bottom of the bowl itself.

Key signs/indicators:

• The bowl spins freely and does not engage with the classic end stop.
• The bowl has lateral play or lifts slightly from the base during operation.
• The gray/black plate on the mixer base shows visibly "worn" or blunted grooves.

Quick checks:

1. With the motor off and unplugged: Remove the bowl and visually inspect the locking plate on the machine's pedestal.
2. Check the bottom of the stainless steel bowl: the pins or locking tabs should not be bent or worn.
3. Thoroughly clean the base: often hardened flour residues prevent proper full insertion.

Costs:

• Replacement part: Purchasing a new bowl locking mechanism for the Kenwood Chef XL KVL4100W (the base plate) typically costs between €20 and €50.
• DIY Repair: Very simple. Usually only requires unscrewing the central nut or the screws holding the plate to the base.
• Technician: If delegated, add approximately €40-60 for labor.

Safety notes: Ensure the machine is unplugged before unscrewing any base components.

CAUSE B: Differential Diagnosis - Head Oscillation and Gear Wear

Probability: 27% (Medium) Why it happens: Very often users report that "the bowl is not stable", but in reality, the bowl is perfectly locked. The problem is that the entire upper head of the mixer jolts violently under strain. This occurs when there is severe wear in the internal transmission system: worn gear teeth or deteriorated bearings create excessive play that affects the entire structure, making the bowl appear unstable.

Key signs/indicators:

• The bowl is firmly locked by hand, but during use, the entire mixer head "jumps".
• Abnormal noises (grinding, metallic screeching) coming from the upper part of the mixer.
• The defect is more noticeable with the dough hook and dense doughs.

Tools needed: Torx/Phillips screwdriver set, plastic pry tools for removing upper covers, specific food-grade grease for gears.

Costs:

• Replacement part: Replacing the entire planetary gear assembly for the Kenwood Chef XL KVL4100W is an expensive operation (approximately €50-100+). If the problem is limited to the shaft, the drive shaft bearings specific to this model are cheaper (€10-30).
• Repair: Requires complete opening of the motor head, removal of old grease, and recalibration. Technician intervention is strongly recommended.

Output for technician: "The customer complains of bowl instability, but the base lock appears intact. Instead, a strong jolt of the motor head under load is observed. Inspection of the planetary gear assembly and shaft bearings for wear or excessive tolerances is requested."

CAUSE C: Wear of the Accessory Attachment (Output Shaft)

Probability: 10% (Low) Why it happens: Another situation that is confused with the bowl not locking is the oscillation of a single accessory (whisk or hook). If the bayonet fitting of the accessory or the mixer's output shaft has deformed, the utensil will rotate eccentrically, hitting the bowl walls and causing it to vibrate.

Key signs/indicators:

• The problem occurs only with a specific accessory (e.g., only with the hook, but not with the wire whisk).
• The accessory has a lot of vertical or lateral "play" when inserted into the shaft.
• Signs of metallic wear on the accessory attachment.

Quick checks:

1. With the motor off: Insert all supplied accessories one by one.
2. Move them by hand to check which one shows abnormal play.
3. If only one wobbles, the problem is the accessory. If all wobble, the problem is the output shaft (linked to Cause B).

Costs:

• Replacement part: Replacement of the single worn accessory (€15-40).
• Repair: No technical expertise required, just purchase the replacement part.

Real micro-case: "A customer complained that the bowl of their KVL4100W would detach on its own. Analyzing the machine, the base was perfect. The problem was the dough hook: it had slightly bent after falling to the ground. Rotating crookedly, it leveraged against the bowl walls, forcing it to detach from the base. Once the hook was replaced, the problem disappeared."

WHICH IS YOURS?

1. If the bowl spins freely or doesn't grip the base: The problem is almost certainly the Locking plate or bowl base (Cause A). It is the most common fault (63%). DIY repair is inexpensive (€20-50) and within everyone's reach.
2. If the bowl is secure, but the mixer head jolts violently: You are facing an internal wear problem with the Planetary gear assembly or Bearings (Cause B). This makes the entire machine seem unstable. It is a complex and costly repair.
3. If you hear abnormal noises or vibrations only with one utensil: Check the Accessory attachment (Cause C). Replacing a deformed whisk or hook is the quickest and most economical solution.

Operational decision: If the locking mechanism at the base of the bowl is visibly "worn" (Cause A), proceed without delay with purchasing the replacement part (€20-50) and self-replacement, as it is a highly cost-effective intervention. If, however, the bowl engages correctly but the mixer head jolts due to internal gear damage (Cause B), repair costs (parts + technical labor) can easily exceed €100-150. In the latter case, depending on the age and general condition of your Kenwood, carefully evaluate whether to proceed with the repair or consider replacing the appliance.
