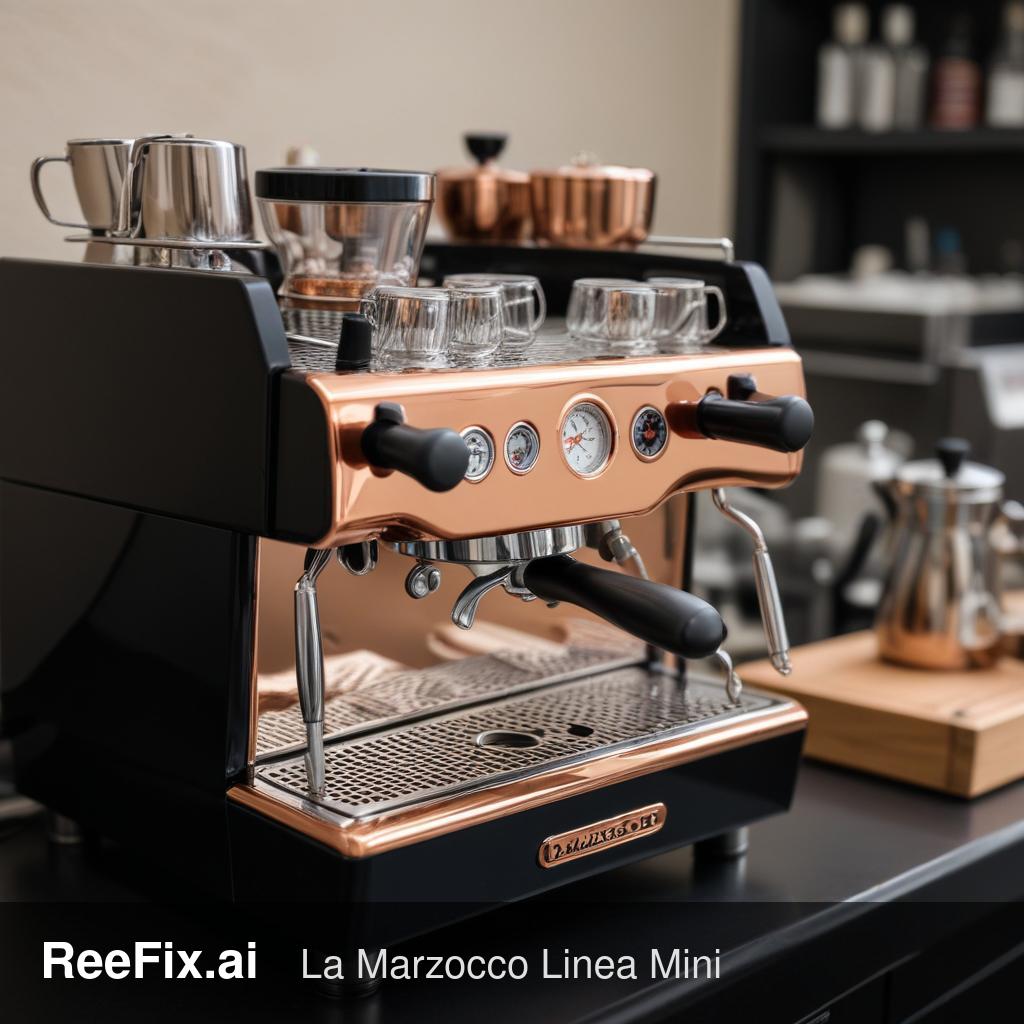

La Marzocco Linea Mini: Group Head Not Heating - Diagnosis Guide

⚠️ WARNING / ELECTRICAL HAZARD. This appliance operates with High Voltage or residual charges. Physical intervention is extremely dangerous and it is strongly recommended to entrust it to a qualified specialized technician to avoid electrocution. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

CHECK 1: Temperature Probe (PID Probe Error)

Probability: Very High (60-75%) that it is the main cause. The "PID error probe" almost always indicates a direct problem with the group head temperature sensor or its ability to communicate. Without a reliable reading from the probe, the machine doesn't know if the group head is hot or cold and will not activate heating for safety.

Quick checks (for technician only):

1. Visual Inspection: With the machine unplugged, a technician will look for signs of physical damage to the La Marzocco Linea Mini Group Head Temperature Probe (corrosion, bends, breaks).
2. Resistance Measurement: Using a Multimeter, the technician will measure the probe's resistance at room temperature. An out-of-spec value (typically an open circuit or a very low value) confirms the fault. Key signals: The group head remains completely cold, no attempt to heat, persistent PID error. Often happens when: The machine has undergone intense heat cycles for years, or if water has caused corrosion on the probe contacts.

CHECK 2: Probe Wiring and Connections

Probability: Medium (15-25%), often related to the probe problem. Even if the probe is intact, faulty wiring prevents the signal from reaching the La Marzocco Linea Mini PID Controller Board. The PID error is a false positive for the probe, but the cause is the cable.

Quick checks (for technician only):

1. Visual Inspection: The technician will examine the cables from the probe to the PID board for fraying, cuts, burns, or crushing.
2. Continuity Test: With a Multimeter, the wiring continuity will be checked to ensure there are no breaks in the circuit. Counter-examples: If the probe has just been replaced and the error persists, the problem is very likely in the wiring or, less frequently, in the PID board.

CHECK 3: Group Head Heating Element

Probability: Low (5-10%) as a direct cause of "PID error probe", but critical for lack of heating. If the La Marzocco Linea Mini Group Head Heating Element is faulty (open circuit), the group head will never heat up. The PID, not detecting any temperature increase, might signal a generic error or a "heating timeout" which the firmware interprets as a probe problem, failing to distinguish between a non-functional heater and a faulty sensor.

Quick checks (for technician only):

1. Resistance Measurement: With a Multimeter, the technician will measure the resistance of the heating element. An infinite value (open circuit) indicates a fault. Common errors: Confusing a heating error with a probe error. An experienced technician will always check both. Output for technician: After excluding the probe and wiring, the heating element is the next component to test for lack of heating.

CONCLUSION

If the La Marzocco Linea Mini Group Head Temperature Probe or its wiring are faulty (Check 1 or 2), repair is possible but requires a technician for access and replacement. If the probe and wiring are intact, but the La Marzocco Linea Mini Group Head Heating Element is faulty (Check 3), the technician will replace it. If all tested components are functional, the problem might lie in the La Marzocco Linea Mini PID Controller Board, making the repair more complex and potentially costly.

Operational decision: Contact a qualified technician for diagnosis and repair; DIY is not recommended due to high electrical risk and testing complexity.
