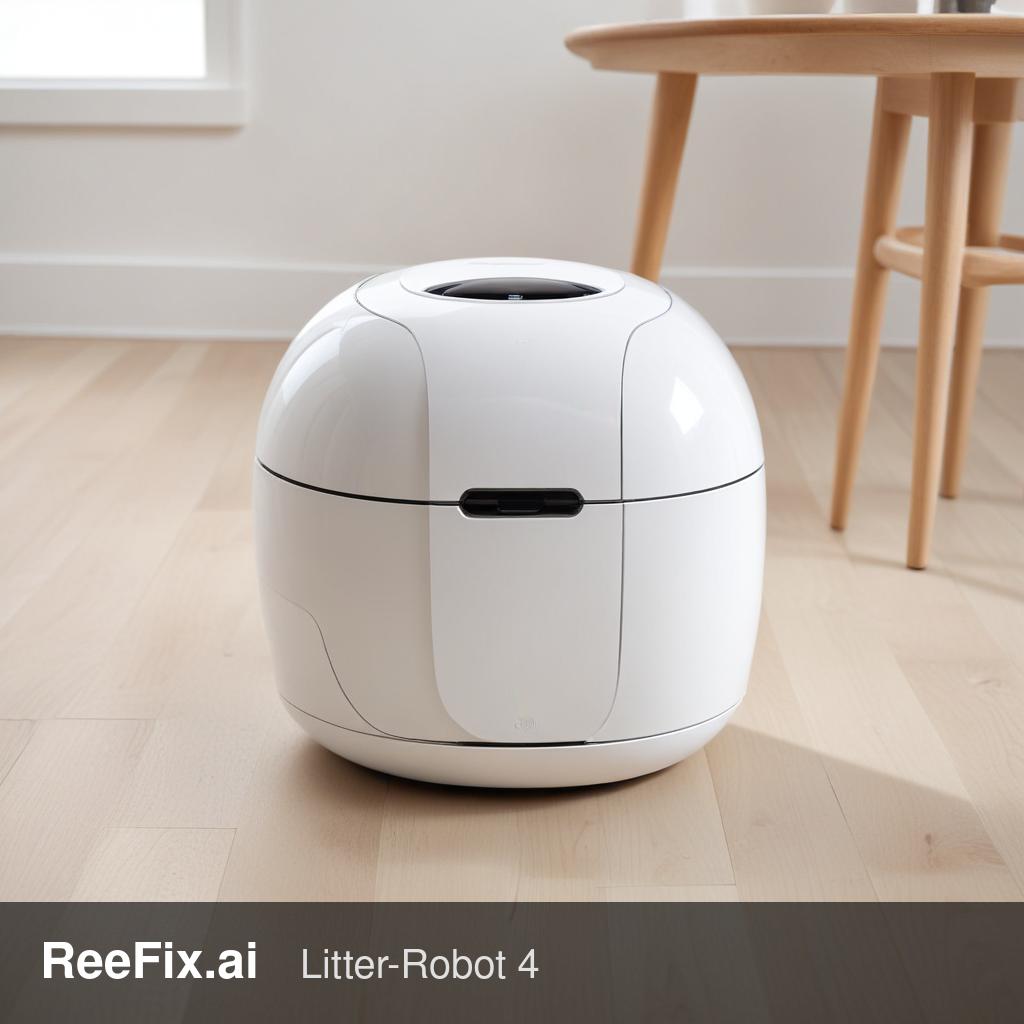

Litter-Robot 4: Flashing red LED and motor stuck diagnosis

⚠️ SAFETY WARNING. The Litter-Robot 4 operates at low voltage (15V DC), but before any intervention, it is essential to unplug the power supply from the wall outlet and remove any internal backup battery to prevent short circuits. Pay close attention to moving mechanical parts to prevent crushing hazards. If physical intervention proves complex, it is recommended to rely on a qualified technician. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

REAL CASE

Your Litter-Robot 4 shows a flashing red LED bar and the motor fails to complete the rotation cycle, remaining stuck. To correctly diagnose this behavior, it is crucial to make a precise technical distinction regarding the device's light codes:

1. Flashing red LED bar (Cat Sensor Fault): Indicates that the safety system detects the presence of a cat (or an abnormal weight) continuously for over 30 minutes. For safety reasons, the logic board inhibits the motor and blocks the rotation cycle.
2. Red LED bar with partial yellow flashing (Over-torque / Globe Jam): Indicates that the motor is encountering excessive physical resistance during the globe's rotation (mechanical overload), causing the board to cut power to prevent damage.

Often these problems occur after a period of intense use or if cleaning has not been regular, due to litter compacting in critical areas or dust obstructing the upper optical sensors.

GENERAL PATTERN

The Litter-Robot 4 constantly monitors both the OmniSense™ safety sensors (laser and scale) and the current drawn by the DC motor. The main causes of the blockage are divided based on their actual probability:

1. Dirty or obstructed OmniSense laser sensors (45%): This is the most frequent cause of the flashing red LED. Fine litter dust or cat hair accumulates on the lenses of the three laser sensors located in the upper part of the bezel. The system interprets the obstruction as the continuous presence of a cat and blocks the motor.
2. Weight calibration issues or excess litter (25%): If the litter exceeds the maximum line ("MAX") or if the device has been recently moved without zeroing the scale, the weight sensor detects a continuous abnormal load, blocking the cycle with a flashing red LED.
3. Mechanical obstruction or debris accumulation on the tracks (20%): Clumped litter residues deposit on the sliding rollers or between the motor pinion and the globe's rack. This causes excessive friction (Over-torque), signaled by a flashing red and yellow LED.
4. Electrical fault in the power supply or motor (10%): A voltage drop from the external 15V power supply or internal wear of the DC motor/gearbox prevents proper globe rotation.

WHAT TO DO NOW

To decide whether to proceed with DIY, call a technician, or consider replacement, follow this diagnostic path:

1. Quick Checks (DIY - High Probability of Resolution)

• Unplug the appliance from the power and remove any backup battery.
• Cleaning OmniSense Sensors (High probability: 45%):
  • Use a dry, clean microfiber cloth to wipe the upper bezel area where the three laser sensors are located.
  • If necessary, use a can of compressed air held at a safe distance (or a vacuum cleaner with a soft brush attachment) to remove hair and fine dust from the sensor holes.
• Weight Check and Reset (Probability: 25%):
  • Ensure that the litter does not exceed the "MAX" line inside the globe.
  • Place the Litter-Robot 4 on a flat, rigid surface (avoid carpets or litter mats that can skew the scale).
  • Reconnect the power and press the Reset button twice to zero the scale (the LED bar will flash white briefly to confirm).
• Mechanical Inspection of the Globe (Probability: 20%):
  • Remove the bonnet and the globe itself.
  • Clean the sliding tracks in the base and the support rollers of any debris or hardened litter.
  • Check that the pinion (the white motor gear in the base) and the globe's rack do not have damaged teeth or dirt accumulation. If necessary, apply a thin layer of silicone lubricant specific for plastic gears.

Decision after Quick Checks:

• If the problem is resolved: Excellent, it was dirty sensors, unbalanced weight, or a small mechanical obstruction. Cost: €0.
• If the problem persists: Proceed to the next checks.

2. Advanced Checks (DIY with Tools or Technician)

• Power Supply Test (Probability: 10%):
  • Use a professional digital multimeter to measure the output voltage from the power supply. It should be a stable 15V DC.
  • If the voltage drops below 13.5V under load (when the motor attempts to start), the power supply is exhausted and needs to be replaced.
• Power Supply Cost: A 15V power supply compatible with Litter-Robot costs approximately €20-40 and is very easy to replace yourself.

Decision after Power Supply Test:

• If the power supply is faulty: Purchase a new one and replace it. Cost: Low (€20-40), DIY repair.
• If the power supply is OK and the problem persists: The problem lies in the motor or the motherboard.

3. Motor or Motherboard Diagnosis (Technician Recommended)

• Motor/Gearbox Assembly: If the power supply is intact but the motor only hums or lacks the strength to turn, the DC motor or internal gearbox is damaged. Replacement with a Litter-Robot 4 replacement motor costs approximately €50-100 for the spare part, but requires more extensive disassembly.
• Main Logic Board (Main PCB): If even the motor is functional, the problem lies in the control circuit of the motherboard (current sensor or driving MOSFET). This repair is complex and often requires replacing the entire board or base.

Final Decision:

1. Repair yourself: If it involves sensor cleaning, weight calibration, or external power supply replacement. Cost: €0 - €40.
2. Contact a technician: If the motor or gearbox is damaged and you are not skilled with internal wiring. The total cost (diagnosis + motor replacement + labor) ranges between €100 and €200+.
   • Output for the technician: "The device exhibits a rotation cycle blockage with a flashing red LED (persistent Cat Sensor Fault) or red/yellow LED (Over-torque). Verification of the OmniSense laser sensors, load voltage test of the 15V power supply, and inspection of the DC motor's current draw are required to rule out short circuits in the windings or gearbox damage."
3. Replace the device: If the main motherboard is damaged or if the base requires a complete replacement out of warranty. Since a new Litter-Robot 4 in Europe costs approximately €700-900, if the repair estimate exceeds €350-400, purchasing a new unit or an official replacement base is the most sensible choice.
