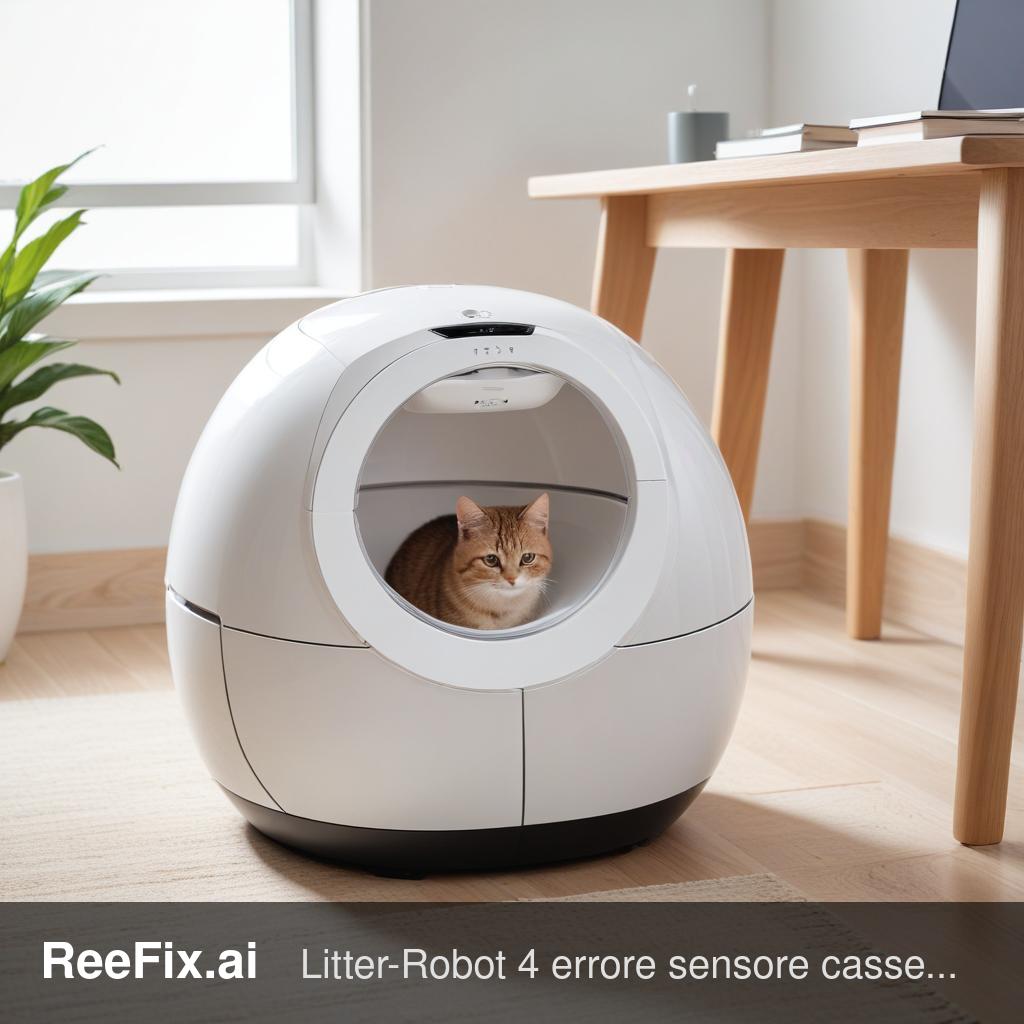

Litter-Robot 4 Full Drawer Sensor Error: Diagnosis and Solutions

⚠️ SAFETY WARNING. This appliance is powered by low voltage (15V DC) via an external power supply, but may be equipped with an internal backup battery. Before any deep cleaning or disassembly, disconnect the power supply from the electrical outlet and, if present, disconnect the backup battery to prevent short circuits or accidental activation of the globe rotation motor (crushing hazard). If you do not feel confident, it is recommended to rely on a qualified technician. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

OBSERVED SYMPTOMS

The Litter-Robot 4 signals a full drawer error, typically with a uniformly flashing blue LED bar, even if the waste drawer is empty or has just been emptied. This blockage prevents the automatic cleaning cycle.

WHAT TO RULE OUT

Before proceeding with more complex diagnoses, verify that the problem is not related to other anomalies:

• Flashing red or yellow LED: These colors indicate problems with the motor, globe positioning, or cat presence sensor, not directly with the drawer sensor. In such a case, the problem is not the sensor we are discussing.
• Device on uneven surface or obstructed: Ensure that the Litter-Robot 4 is on a perfectly flat surface and does not touch walls or furniture. An unstable base can alter load cell readings, which the system cross-references with drawer sensor data, generating false positives.
• Lack of power: Verify that the power supply is correctly plugged in and that there are no power interruptions.

FINAL CAUSE

The cause of the full drawer sensor error in Litter-Robot 4 is almost always related to obstruction problems or dirt on the OmniSense™ Time-of-Flight (ToF) sensors.

1. Dust accumulation on ToF sensors (Probability: 60-75%)

   • Why: Fine clumping litter dust settles on the three ToF sensor slots, located at the top of the inner bezel. This dust reflects the infrared beam before it reaches the bottom of the drawer, tricking the system into interpreting the distance as "full drawer."
   • Quick checks:
     • Disconnect power.
     • Remove the globe and drawer.
     • The manufacturer suggests gently vacuuming dust with a vacuum cleaner or using a cotton swab to prevent air pressure from pushing dirt deeper or damaging the sensors.
     • Use a cotton swab lightly moistened with isopropyl alcohol for electronic cleaning on eBay to clean the visible lenses.
     • Dry with an antistatic microfiber cloth.
   • Costs: Low (cost of cleaning materials, approximately €10-30). Repairable independently.
   • Often happens when: Very fine litters are used or in dusty environments, or if internal cleaning is not regular.

2. Incorrect bag placement in the drawer (Probability: 20-30%)

   • Why: The OmniSense™ sensors scan the entire area. If the plastic bag is not taut or has creases, raised flaps, or air bubbles protruding upwards, the laser beam hits the plastic instead of the bottom, simulating a full drawer.
   • Quick checks:
     • Disconnect power.
     • Remove the drawer and reposition the bag, ensuring it is snug against the bottom and that the edges are securely folded under the four drawer clips. There should be no excess plastic protruding.
     • Use specific Litter-Robot 4 bags or highly transparent/adhesive bags.
   • Costs: None. Repairable independently.
   • Typical user error: Not paying attention to how the bag fits into the drawer, leaving creases or excess.

3. Outdated firmware or software misalignment (Probability: 5-10%)

   • Why: Early versions of Litter-Robot 4 firmware had less dust-tolerant algorithms. Subsequent updates improved filtering. Misalignment can also be caused by power outages or anomalies.
   • Quick checks:
     • Ensure your Litter-Robot 4 is connected to the official Whisker app.
     • Check for and install firmware updates.
     • Perform a manual recalibration of the DFI laser sensors by following this precise procedure:
       1. Completely empty the waste drawer and remove the bag.
       2. Place a white, smooth, flat sheet of paper on the bottom of the empty drawer (this will serve as a reflective surface for the lasers).
       3. Reinsert the drawer.
       4. Turn off the unit by pressing the Power button (do not unplug).
       5. Wait at least 5 seconds.
       6. Quickly press the buttons on the control panel in sequence (within 5 seconds of each other): CONNECT -> RESET -> CONNECT -> EMPTY -> CYCLE.
       7. The unit will perform a light test (LEDs will flash red, green, and blue) and start a rotation cycle. During calibration, the LED bar will show a solid yellow light with a flashing green light.
       8. If calibration is successful, the LED bar will return to solid blue. If it fails, it will show a yellow bar with a flashing red light for 5 seconds.
   • Costs: None. Repairable independently.

4. Loose internal connections or faulty sensor (Probability: 1-3%)

   • Why: Vibrations or humidity can loosen the connectors between the sensor board (bezel board) and the motherboard (main PCB), or the ToF sensor itself may fail.
   • Key signals: If cleaning and repositioning do not resolve the issue, and the error persists intermittently or continuously.
   • Costs: Medium-high. Requires disassembly with a precision screwdriver kit on eBay to access internal components. Replacing the sensor board can cost approximately €50-100 for the part. Intervention by a qualified technician costs approximately €50-150 for labor.
   • Output for technician: "Persistent full drawer sensor error after cleaning and reset. Check bezel board/main PCB wiring and ToF sensor integrity. Possible sensor board replacement."

OPERATIONAL DECISION: Always start by cleaning the sensors and checking the bag placement. If the error persists, update the firmware and perform the manual recalibration procedure with the white paper. If this also does not resolve the issue, consider technician intervention to check internal connections or replace the sensor. Given the high commercial value of the Litter-Robot 4 (which far exceeds €700-800), repairing or replacing the sensor board (estimated between €100 and €250 total) is always extremely cost-effective compared to purchasing a new device.
