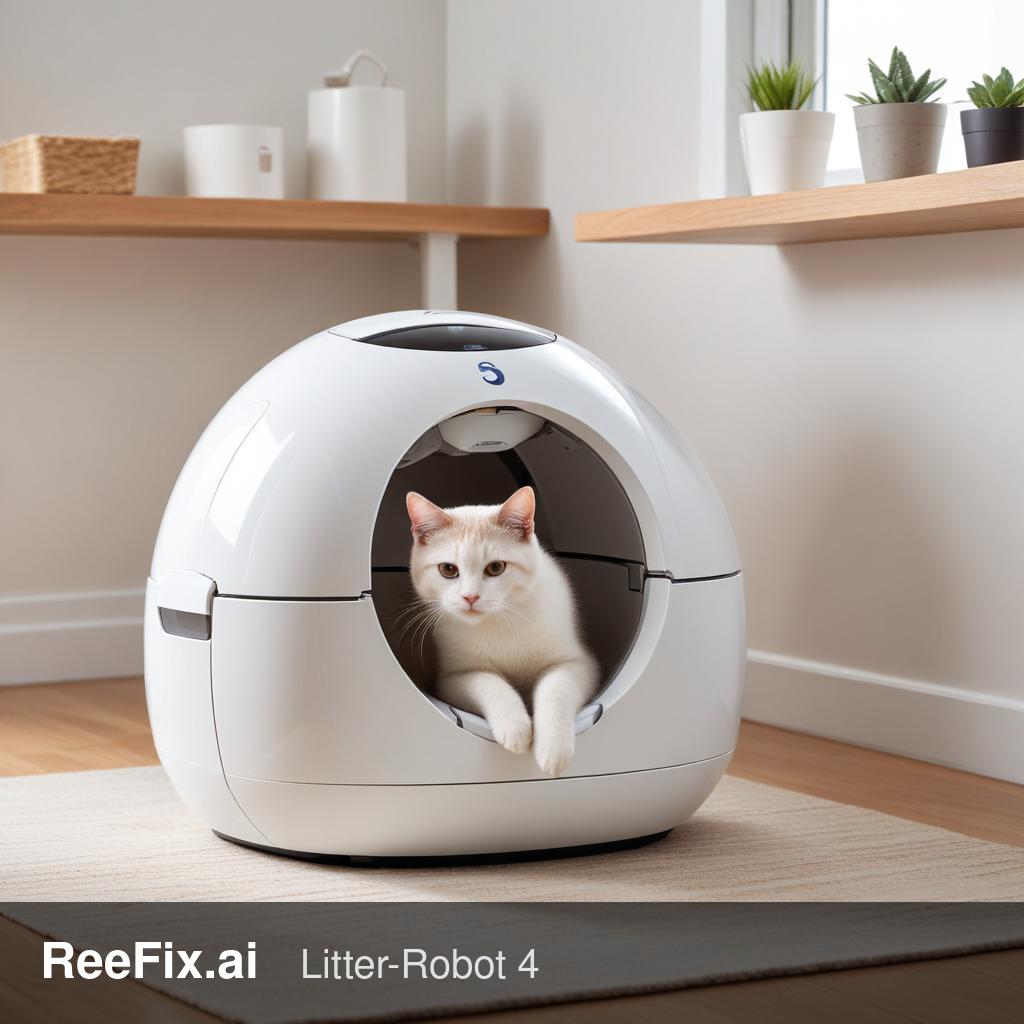

Litter-Robot 4: Wi-Fi Configuration Error - Diagnosis Guide

⚠️ SAFETY WARNING. This appliance operates at low voltage (15V DC) via an external power supply. However, it is essential to unplug the power supply from the wall outlet before any intervention or disassembly. If the device has an internal backup battery, disconnect it to prevent short circuits. Pay attention to the moving mechanical parts of the globe. If the intervention is complex, it is recommended to rely on a qualified technician. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

REAL CASE

Your Litter-Robot 4 cannot connect to your home Wi-Fi network. The Whisker app initially detects the robot via Bluetooth, but the configuration procedure systematically fails, often getting stuck after entering the Wi-Fi password or during settings saving. In some cases, the robot might unexpectedly restart precisely when attempting to establish the connection, or it might not enter pairing mode at all (the yellow light next to the Connect button does not flash).

GENERAL PATTERN

Wi-Fi configuration errors in the Litter-Robot 4 are almost always related to three main areas: Wi-Fi network incompatibility (50%), power supply issues (25%), or firmware/network cache corruption (15%). Only a smaller percentage (10%) is attributable to hardware or environmental damage.

• Network incompatibility: The Litter-Robot 4 operates exclusively on the 2.4 GHz Wi-Fi band. Many modern routers use "Band Steering," unifying 2.4 GHz and 5 GHz under a single name (SSID). This often confuses the robot or smartphone during provisioning, preventing the handshake. This often happens when router settings are not adjusted.
• Power supply issues: The Wi-Fi module requires stable voltage, especially during current peaks (200-300 mA) for radio transmission. A degraded power supply can cause micro-voltage sags that reset the network microcontroller, blocking configuration. This is a typical error not visible with a simple multimeter, but it causes sudden robot restarts.
• Firmware/cache corruption: Failed connection attempts can leave corrupted data in the wireless module's memory, preventing it from accepting new credentials. A borderline condition could be a power outage during a firmware update, which can lock the module.
• Minor damage: The device's environment (bentonite dust, humidity) can cause oxidation or electroconductive dirt on the motherboard, reducing the sensitivity of the integrated Wi-Fi antenna.

Key Signals/Indicators:

• Network incompatibility: The phone detects the robot via Bluetooth, but configuration fails immediately after entering the Wi-Fi password or during settings saving.
• Faulty power supply: The robot completely restarts (panel lights flash or change color suddenly) at the exact moment it tries to connect to Wi-Fi.
• Corrupted cache/stuck firmware: The robot does not enter pairing mode (the yellow light next to the Connect button does not flash) or the Whisker app does not detect the device via Bluetooth even at close range.
• Minor damage: Extremely weak Wi-Fi signal even a few centimeters from the router, or dirt/oxidation on the motherboard.

Quick Checks (DIY):

1. Router & Robot Restart: Turn off and on your Wi-Fi router and Litter-Robot 4 (unplugging power for 15 minutes). Retry configuration.
2. Router Settings (Crucial): Access your router settings.
   • Temporarily disable the 5 GHz band or "Band Steering" (if present) to force the router to operate only at 2.4 GHz.
   • Alternatively, create a dedicated 2.4 GHz guest network with a simple SSID and password, and try to connect the robot to it.
   • Ensure client isolation (AP Isolation) is disabled.
   • Verify that the network name (SSID) is less than 31 characters and does not contain special characters (such as commas, slashes, periods, at signs, apostrophes, or spaces).
3. App & Smartphone:
   • Ensure location services (GPS) and Bluetooth permissions are active for the Whisker app on your smartphone.
   • Uninstall and reinstall the Whisker app, clearing your smartphone's cache.
4. Power Supply Test (Visual): Visually check the power supply and cable for damage. If you have a compatible replacement power supply Litter-Robot 4 compatible power supply, try using it.

Output for technician (synthetic handoff):

"The Litter-Robot 4 fails Wi-Fi configuration via the Whisker app after scanning or credential submission. Suspected Band Steering incompatibility, power supply instability (voltage sag), or wireless module firmware corruption. Request verification of Main PCB integrity, integrated communication module, antenna. Perform 15V DC power supply stability test under RF load and visual inspection of PCB for oxidation/dirt, with eventual hardware hard reset of the module."

Required Tools (for qualified technician):

• Litter-Robot 4 compatible power supply (for stability test)
• AstroAI professional digital multimeter (for precise measurements)
• WD-40 Specialist contact cleaner spray (for cleaning)
• Replacement Main PCB Litter-Robot 4 Main PCB (if integrated module is faulty)

WHAT TO DO NOW

1. If the problem is Network Incompatibility (50% probability):
   • DIY Repair: Perform "Quick Checks" 1, 2, and 3. Modifying router settings (disabling 5 GHz or Band Steering, creating a 2.4 GHz guest network) is the most common and free solution. If you can connect after these changes, you have solved the problem.
   • Cost: None.
2. If the problem is the Power Supply (25% probability):
   • DIY Repair: If the robot restarts during connection, try replacing the power supply with a new or compatible one (Litter-Robot 4 compatible power supply). This is a simple intervention, and the cost of the power supply is relatively low (around 20-40 euros).
   • Cost: Low (20-40 euros for the power supply).
3. If the problem is Corrupted Network Cache or Stuck Firmware (15% probability):
   • DIY Repair: Perform "Quick Check" 3 (app reinstallation and smartphone cache clearing) and a hard reset of the robot (unplug power for 15 minutes, removing any internal backup battery). This can resolve software lock-up.
   • Consult a technician: If the problem persists and the robot does not enter pairing mode, a deeper hardware reset of the Wi-Fi module might be necessary, which is only feasible by a qualified technician.
   • Cost: None for DIY attempts, Medium (50-100 euros) for technical intervention.
4. If the problem is Physical Damage or Oxidation (10% probability):
   • Consult a technician: If previous checks fail and you suspect physical damage, oxidation, or an extremely weak Wi-Fi signal, inspection and cleaning of the motherboard require disassembly and specific skills.
   • Replace the device: If the technician diagnoses a fault with the Litter-Robot 4 Main PCB (high cost for the spare part, often over 100-150 euros plus labor), it might not be economically viable to repair, and replacing the device might be the best option.
   • Cost: High (150-250 euros for spare part + labor, or cost of new device).

Operational decision: If after trying to resolve network incompatibility and checking/replacing the power supply the problem persists, consider a hard reset of the robot; if this also fails, consult a technician for an in-depth diagnosis of the motherboard. If the cost of motherboard repair exceeds 40% of the value of a new Litter-Robot 4, consider replacing the device.
