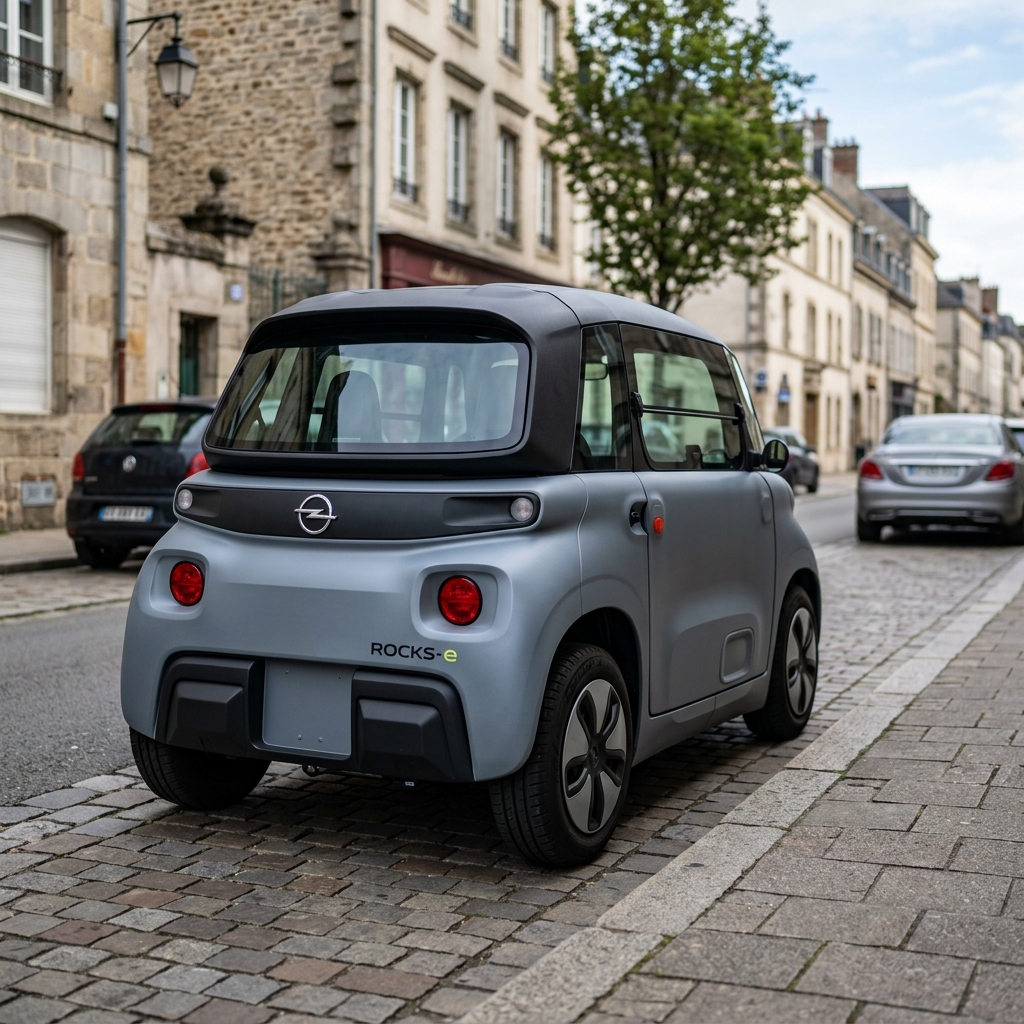

Opel Rocks Electric Microcar Battery Not Charging: Diagnosis

WARNING: RISK OF FIRE. This device contains lithium batteries. Improper piercing or bending during disassembly can cause explosions or flames. The intervention requires precision and the assistance of a specialized technician is recommended. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

TECHNICAL CHECKLIST

1. External Charging Cable Check: Inspect the charging cable for visible damage, abnormal bends, or damaged connectors. Test with a cable known to be working.
   • Probability: Low (if it's the same cable and it worked before).
2. Vehicle Charging Port Visual Inspection: Check the Opel Rocks Electric charging port for signs of physical damage, corrosion on the pins, dirt, or moisture. Ensure the pins are not bent or obstructed.
   • Probability: High (35-45%). Frequent use and environmental exposure make the port vulnerable.
3. Test with Another Charging Station: Try charging the car at a different public or private charging station, known to be working correctly. This rules out external vehicle problems.
   • Probability: Low (the flashing light on the vehicle indicates an internal problem).
4. Read Error Codes (DTC): Use an Opel Rocks Electric Diagnostic Scan Tool to retrieve any error codes (DTCs) from the vehicle's control units (BMS, OBC, VCU). Specific codes indicate the exact nature of the fault.
   • Required Tools: Opel Rocks Electric Diagnostic Scan Tool.
5. AC Voltage Check at the Charging Port: With the vehicle connected to charging, use an EV Diagnostic Multimeter to measure the presence of incoming AC voltage at the charging port pins. This verifies that current is reaching correctly.
   • Safety Notes: Perform only with insulated tools and specific expertise.
6. Communication Signal Check (CP/PP): Verify the Control Pilot (CP) and Proximity Pilot (PP) signals between the charging station and the vehicle port. These signals are crucial for initiating charging.
   • Probability: Medium (a fault here blocks charging).
7. Onboard Charger (OBC) Inspection: If AC voltage reaches the port but there is no charging, attention shifts to the Onboard Charger (OBC) Opel Rocks Electric. An AC error often points to an internal malfunction. Probability: High (30-40%).
8. BMS Monitoring: Using a diagnostic tool, access data from the BMS (Battery Management System) Module Opel Rocks Electric to check individual cell voltages, temperatures, and overall battery status. An anomaly here can block charging for safety. Probability: Medium (15-20%).
9. Internal Wiring Check: Visually inspect and test the continuity of the wiring between the charging port, OBC, and BMS.
   • Probability: Low-Medium (5-10%).

INSPECTION RESULT

The non-charging problem with "AC error" and a flashing light on the Opel Rocks Electric port indicates a significant fault in the charging system.

Most probable causes in order of incidence:

1. Fault in the Opel Rocks Electric Charging Port Assembly (35-45%): Physical damage, corrosion, or problems with the control circuits integrated into the port. This often happens when the vehicle is exposed to minor impacts or humidity, compromising contacts or proximity/control sensors. The replacement cost is medium.
2. Onboard Charger Fault (OBC) Opel Rocks Electric (30-40%): The "AC error" is a strong indicator. The OBC converts AC to DC for the battery. An internal fault (e.g., power components, control logic) prevents its operation. The replacement cost is high.
3. Problem with the BMS (Battery Management System) Module Opel Rocks Electric (15-20%): If the BMS detects battery anomalies (e.g., unbalanced cell, overtemperature), it blocks charging for safety. The replacement cost is high.

Decision: DO NOT attempt the repair yourself. The complexity of the high-voltage electrical system and the risk of fire make intervention extremely dangerous without specific equipment and training. IMMEDIATELY CONTACT A SPECIALIZED ELECTRIC VEHICLE TECHNICIAN. Only a professional with Insulated hand tools for EV repairs and specific diagnostics can safely identify and resolve the problem. Device replacement is not the first option, but a consequence of the technical diagnosis.
