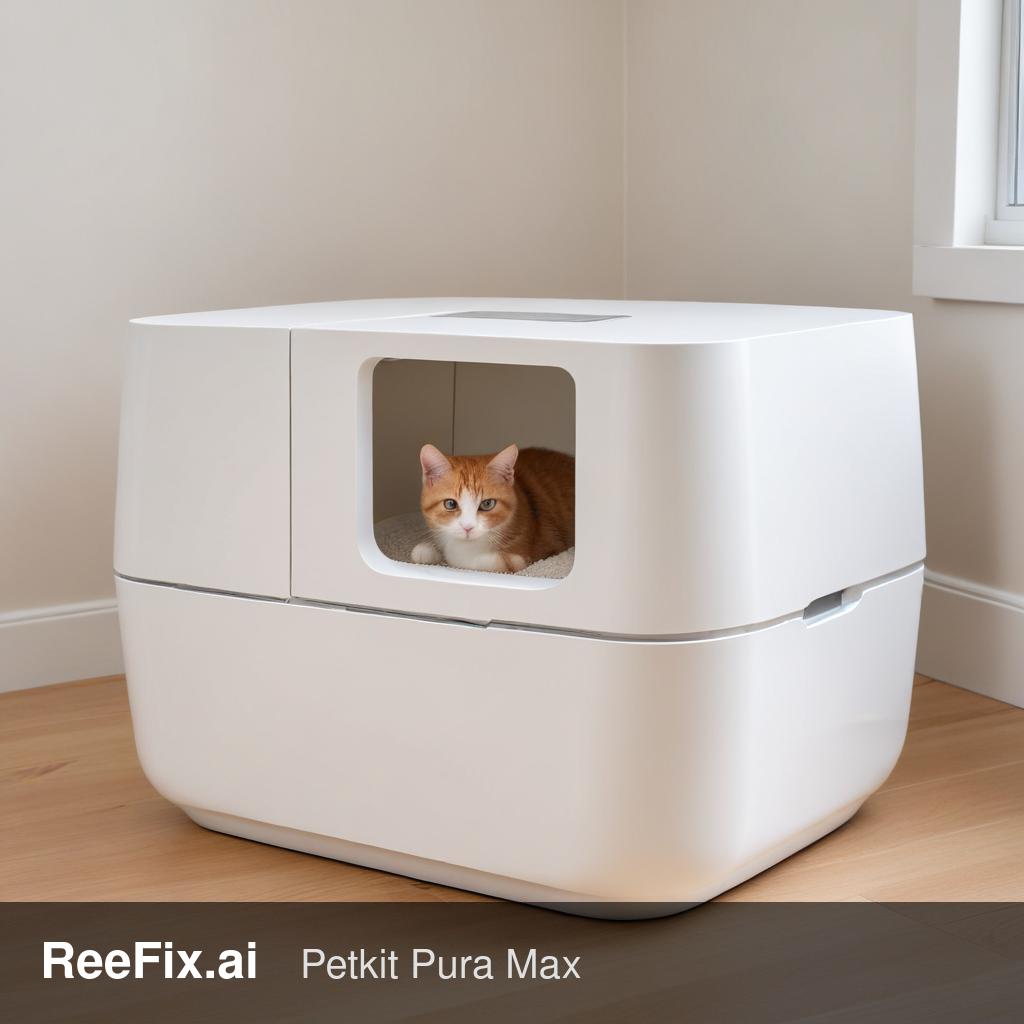

Petkit Pura Max: Diagnosing Full Drawer Error and Weight Sensor Issues

⚠️ SAFETY WARNING. The Petkit Pura Max operates at low voltage (12V), but it is crucial to unplug the power adapter from the electrical outlet before any deep cleaning or disassembly. This prevents accidental short circuits on the logic board and eliminates the mechanical risk associated with the automatic rotation of the drum or the motorized drawer lid. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

QUICK TEST

The "full drawer" error or anomalous weight sensor readings on the Petkit Pura Max are often caused by simple problems that can be resolved directly by the user. Let's focus on the most probable and easy-to-verify causes.

Quick checks (DIY):

• 1. Bag Positioning and Automatic Lid Closure (60-75% probability):

  • Cause: The Petkit Pura Max does not have a dedicated optical or weight sensor inside the drawer to detect waste. It detects a "full drawer" when the motorized lid (the automatic flap that seals the drawer) fails to close completely. If the trash bag is not taut, has raised edges, or if waste accumulates creating a mound, the lid hits the obstruction and does not close, triggering the error in the app.
  • Action:
    • Turn off the device and remove the drawer.
    • Ensure the bag is perfectly flush with the edges and bottom of the drawer, with no protruding or poorly stretched parts.
    • If the drawer is partially full, gently shake it to level the waste.
    • Also clean the underside of the automatic lid from any litter residue that might block it.
  • Key signals: The error occurs even if the drawer is empty or half-empty, especially after replacing the bag or if non-original bags of incorrect size are used.

• 2. Missing Calibration or Weight Reset (20-30% probability):

  • Cause: The weight sensors (load cells) located under the litter box feet record every weight variation. If you add litter, empty the drawer, or move the device without performing a reset (tare), the machine detects a weight anomaly that can generate false full drawer alarms or block cleaning cycles.
  • Action:
    • Place the litter box on a hard, flat surface.
    • Perform a weight reset via the Petkit app (calibration section) or press the physical "OK" button on the device display twice to zero the tare.
  • Prevention tip: Make it a habit to reset the weight every time you perform maintenance or refill the litter.

• 3. Unsuitable Surface or Instability (10-15% probability):

  • Cause: If the Petkit Pura Max is placed on a carpet, a soft surface, or not perfectly level, the weight sensors at the base cannot take a correct reading, generating continuous errors.
  • Action:
    • Move the device to a hard floor (tiles or parquet).
    • Ensure all four feet rest firmly on the ground and that the litter box does not touch walls, furniture, or taut electrical cables.

DECISION FORK

If the quick tests have not resolved the problem, the probability of a hardware defect or a more complex issue increases.

• 1. Parasitic Mechanical Coupling (5-10% probability):

  • Cause: The Petkit Pura Max casing touches a wall, furniture, or a taut cable. This external contact alters the weight reading, partially bypassing the sensors.
  • Action: Move the device away from walls and furniture, and ensure the power cable is not under tension or in contact with the casing.
  • Real micro-case: We have encountered cases where simply moving the litter box a couple of centimeters resolved a persistent weight error.

• 2. Moisture or Damage to Weight Sensors (Low probability, <5%):

  • Cause: Liquid infiltration (e.g., urine leaking out of the drum or un-dried wash water) has damaged the load cells under the feet or their wiring, causing corrosion or signal alterations.
  • Key signals: Intermittent weight errors or completely skewed readings in the app, often after a deep cleaning of the device or if the cat has urinated out of place.
  • Costs: Purchasing a Petkit Pura Max compatible load cell weight sensor can cost between 30 and 70 euros for the spare part. Technician labor can add 50-100 euros, making the total cost (80-170 euros) an expense to evaluate against the cost of a new device (350-450 euros).
  • Tools (for technician): It is advisable to use a digital multimeter to test the resistance of the load cells. Additionally, isopropyl alcohol specific for electronics can be used to clean any oxidized contacts.

• 3. Electronic Damage or Corrupted Firmware (Very low probability, <2%):

  • Cause: Problems with the signal conditioning circuit on the motherboard, capacitors, or outdated/corrupted firmware.
  • Counter-examples: If the official app fails to complete weight sensor calibration even after a full restart, it is a strong indicator of a deep hardware/firmware problem.
  • Edge case: Power surges or the use of non-original power adapters can cause damage to these sensitive components.

DIAGNOSIS CONFIRMED

If after performing the "QUICK TEST" and checking for "Parasitic Mechanical Couplings" the problem persists, the cause is likely related to a more serious hardware malfunction.

Operational decision:

1. If the error is resolved by correct bag positioning, lid cleaning, or weight reset: You can fix it yourself at no cost.
2. If the error persists after all user checks: Consult a specialized technician. The most probable cause is damage to the weight sensors or their wiring (estimated cost for spare parts + labor 80-170 euros).
3. If the technician confirms complex damage to the electronic board or if the repair cost (spare parts + labor) exceeds 50% of the value of a new device: Consider replacing the device.
