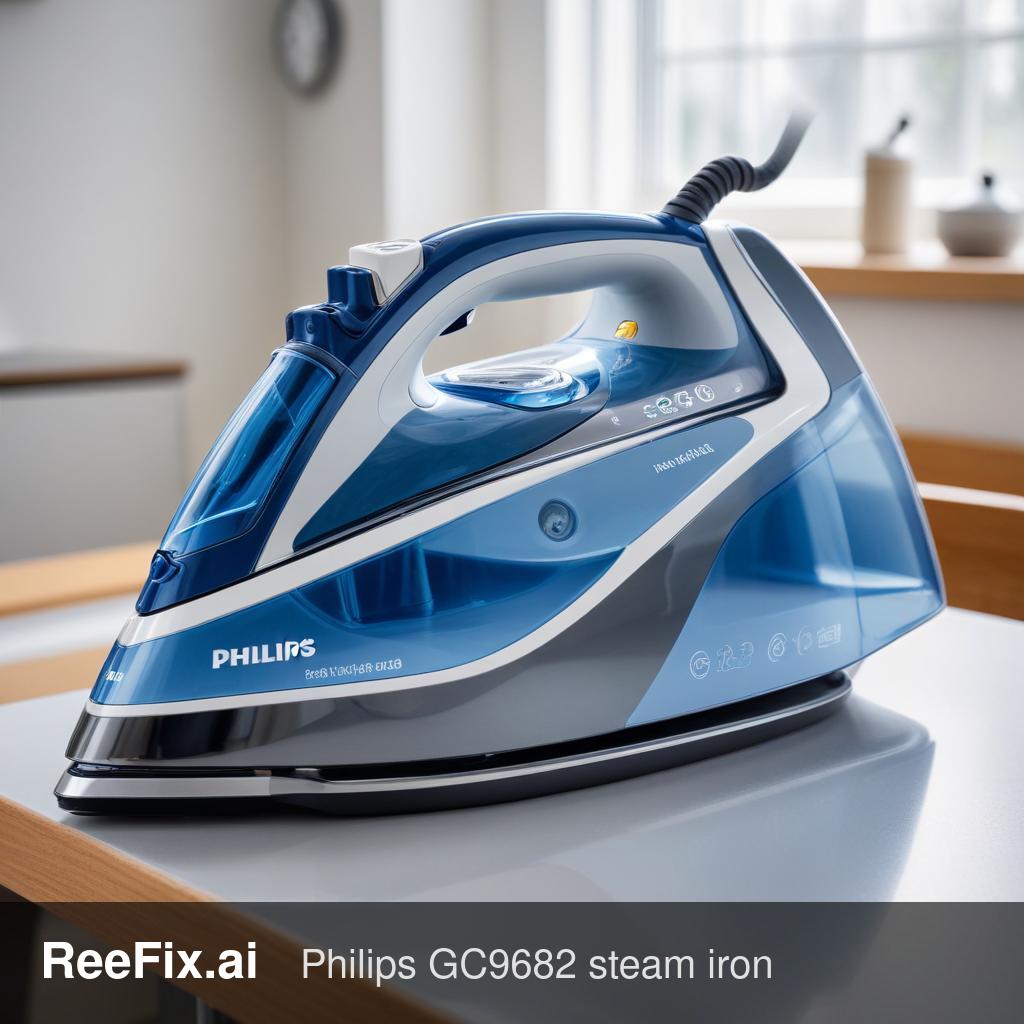

Philips GC9682 Steam Iron Not Producing Steam? Diagnosis and Solution

WARNING: This appliance is connected to the mains and generates high-pressure steam. It is mandatory to always unplug it and allow it to cool down and depressurize completely (at least 2 hours) before any disassembly to avoid severe burns. If the physical intervention is complex, it is recommended to rely on a qualified technician for your safety. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

MAIN CAUSE

1. Limescale obstruction or solenoid valve malfunction (Probability: 60-75%) Limescale is the number one enemy of steam generators. A significant accumulation in the boiler, internal pipes, or soleplate can block the steam path. Water, unable to be converted or expelled correctly, accumulates and escapes through worn gaskets or soleplate holes, causing liquid leaks. The solenoid valve, which controls the release of steam towards the iron, could also be blocked due to debris.

Key signs/indicators:

• Absent or very weak steam, despite the tank being full and the base heating up.
• Liquid water leaking from the soleplate, often accompanied by whitish or brownish residues.
• Absence of the classic metallic "click" from the solenoid valve when pressing the steam trigger.

2. Defective water pump (Probability: 15-25%) The pump's task is to push water from the cold tank into the pressurized boiler. If the pump is faulty or blocked, water does not reach the heating element, and steam is not generated.

Key signs/indicators:

• Total absence of steam.
• No vibration noise (pump hum) coming from the base when the appliance tries to load water.
• Unusually loud or "dry" pump noise.

3. Boiler heating element or thermal fuse failure (Probability: 5-10%) If the heating element that heats the water in the base burns out, or if the safety thermal fuse blows, the water will never reach boiling temperature.

Key signs/indicators:

• The generator base remains cold.
• The steam-ready indicator light continues to flash indefinitely without ever stabilizing.

4. Damaged or misplaced tank (Probability: <5%) A crack in the removable tank or wear of the connection gasket (O-ring) between the tank and the base can prevent proper water intake or cause leaks at the base of the appliance.

VERIFICATION

1. Descaling (Easy De-Calc): The Philips GC9682 is equipped with the Easy De-Calc system. When cold, unscrew the dedicated side knob on the base to drain water and limescale residues. This is the first fundamental step.
2. Listening for the solenoid valve and pump: With the appliance on and at temperature, press the steam trigger. A clear "click" (the solenoid valve opening) should be heard from the base. During prolonged use, the dull hum of the pump recharging the boiler should be heard periodically.
3. Visual inspection of the tank: Remove the tank, fill it, and check that the spring valve at the bottom does not leak water and that there are no cracks in the plastic.

OPERATIONAL OUTCOME

• If descaling solves the problem (Cause 1): Great! The blockage was caused by a limescale plug. Cost: 0€. DIY maintenance.
• If the problem lies in the tank or its gasket (Cause 4): If the crack or leak from the connection valve is evident, simply replace the part. Replacement cost: 20-40€. DIY repair.
• If symptoms indicate internal faults with the pump, solenoid valve, or boiler (Causes 1, 2, 3):
  • Replacing internal components requires opening the base (with security Torx screws) and technical skills. Specific spare parts are available online: a Philips GC9682 water pump, a compatible solenoid valve, or the boiler heating element cost between 20€ and 60€. Labor from a service center can add 50-80€.
  • Decision: The Philips GC9682 (PerfectCare Elite Plus) is a very high-end steam generator. Even with a repair estimate of 100-130€, the intervention is highly cost-effective compared to buying a new device of the same level. Contact a technician for the safe replacement of pressurized components.

Output for technician: The Philips GC9682 steam generator shows no steam and/or water leakage from the soleplate. Limescale obstruction in the hydraulic circuit or mechanical blockage of the solenoid valve is suspected (high probability). Alternatively, check the water pump's absorption and operation, and the continuity of the boiler heating element and safety thermal fuses. Caution: operate only with a depressurized boiler.
