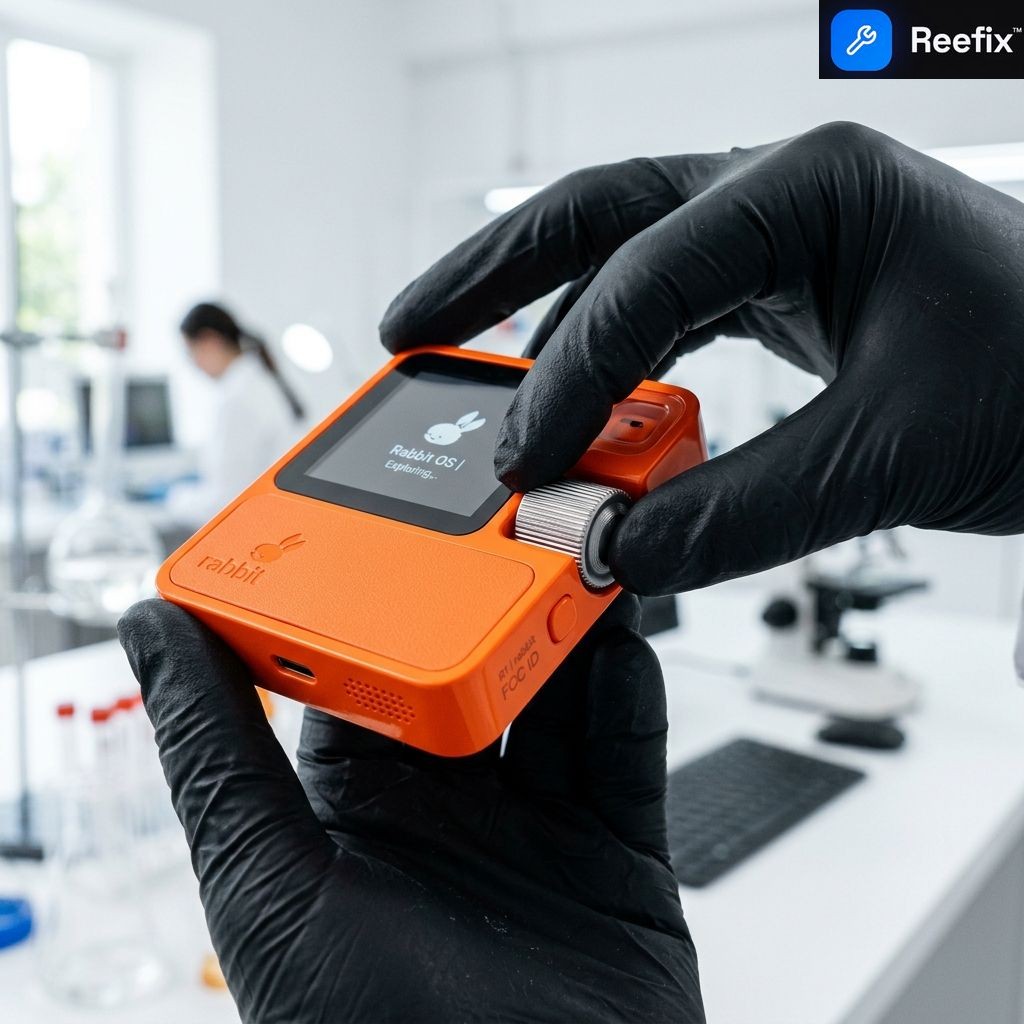

Rabbit R1: Scroll Wheel Stuck - Repair Diagnosis

⚠️ SAFETY WARNING / ELECTRONIC RISKS. This device contains sensitive electronic components and a lithium battery. Improper opening and handling can cause permanent damage to the PCB (printed circuit board) due to electrostatic discharge (ESD) or micro-soldering errors. Drilling or bending the battery can cause explosions or fires. Intervention requires precision and the assistance of a specialized technician is strongly recommended. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

OBSERVED SYMPTOMS

The Rabbit R1 scroll wheel exhibits one or more of the following abnormal behaviors, rendering the device effectively unusable for primary navigation:

• The wheel is physically stuck or rubs against the frame, preventing smooth rotation.
• It spins freely without resistance or without generating the typical detent clicks.
• It does not respond to inputs at all, or the response is intermittent or inconsistent (e.g., selection jumps, inverted scrolling).
• Abnormal noises (rubbing, squeaking) are heard during rotation.

WHAT TO RULE OUT

Before considering hardware interventions, it is crucial to rule out less invasive causes:

1. Temporary Software Lock: An operating system crash (Rabbit OS) can inhibit the wheel's response.
   • Quick check: Perform a forced restart of the device. If the problem persists, attempt a factory reset via the device's Settings menu (Settings > Device > Factory Reset).
2. Surface Obstruction: Sometimes, debris or dense residue can mechanically block the wheel from the outside.
   • Quick check: Inspect the gap between the wheel and the chassis. Use compressed air or a soft brush to remove any superficial obstructions.

FINAL CAUSE

The probability assessment is based on diagnostic experience for pocket-sized devices with rotary encoders.

1. Internal Encoder Contamination (Contact Oxidation) — 45%

   • Why: The Rabbit R1, being a pocket device, is constantly exposed to dust, lint, humidity, and skin oil. These microparticles can penetrate the wheel's gap and deposit on the conductive tracks of the mechanical encoder, acting as an insulator or causing oxidation. This interrupts electrical contact, leading to intermittent or no response.
   • Key signals: The wheel physically rotates, but the input is unreliable, skips items, or scrolls incorrectly.
   • Verification: Applying WD-40 Specialist Dry Contact Cleaner with high evaporation inside the wheel housing can temporarily improve responsiveness if this is the cause.
   • Decision: Attempt DIY cleaning (with caution, risk of infiltration). If it doesn't resolve the issue, consult a technician.

2. Internal Mechanical Encoder Breakage (Wear or Impact) — 30%

   • Why: Continuous mechanical friction wears down the internal contacts of the encoder, or an accidental impact can bend the central pin or crack the plastic housing. This can lead to physical blockage or loss of the "click" sensation.
   • Key signals: The wheel gets stuck, spins completely freely without clicks, or produces a clear rubbing noise.
   • Verification: Requires opening the device to visually inspect the rotation shaft and the integrity of the encoder component.
   • Decision: Technician intervention is necessary. Repair is complex (encoder replacement). Given the difficulty of finding specific spare parts and the complexity, device replacement might be more cost-effective.

3. Micro-fractures in PCB Soldering (Cold Solder Joints) — 15%

   • Why: Repeated mechanical stress on the wheel can stress the solder points that secure the encoder to the printed circuit board. Modern lead-free (RoHS) solder alloys are more brittle and prone to invisible micro-fractures that interrupt the signal.
   • Key signals: The wheel does not respond at all, but might temporarily resume functioning if slight pressure is applied to the device body near the wheel.
   • Verification: Requires opening the device and microscopic analysis of the encoder's solder points on the PCB. Electrical continuity tests with a multimeter are essential.
   • Decision: Requires a specialized technician with micro-soldering skills.

4. Minor Causes (FPC Disconnection or Persistent Firmware Issues) — 10%

   • Why: A loose flexible flat cable (FPC) due to vibrations or thermal shocks can cause unstable contact. Although rare, a persistent problem in the wheel's software driver not resolvable with a simple restart can simulate a hardware failure.
   • Key signals: Total lack of wheel response, sometimes associated with general operating system freezes or graphical anomalies, or intermittent behavior.
   • Verification: After ruling out software with a factory reset, it is necessary to open the device to ensure the FPC cable's ZIF connector is securely inserted.
   • Decision: Software reset is DIY. Checking and repositioning the FPC cable requires opening the device, so a technician is advisable.

Quick Checks

Before proceeding with advanced diagnosis, perform the following steps:

1. Forced Restart: Perform a complete restart of the Rabbit R1 to rule out temporary operating system freezes.
2. External Cleaning: Use compressed air or a soft brush to remove debris around the wheel.
3. Pressure Test: Try to operate the wheel by applying slight pressure to the device body near the component. Temporary improvement suggests a soldering issue.

Tools Needed (for technician)

For professional diagnosis and potential intervention:

• iFixit Precision Screwdriver Kit
• 99% Isopropyl alcohol
• WD-40 Specialist Dry Contact Cleaner
• TS101 Precision Soldering Iron
• Digital multimeter
• Laboratory microscope

Output for Technician

"The Rabbit R1 exhibits a persistent malfunction of the side scroll wheel. Symptoms include lack of response to scroll inputs, random selection jumps, or a perceptible mechanical blockage during rotation. First, verify the integrity of the rotary encoder module and its flexible flat cable (FPC) connection to the motherboard, ruling out any disconnections caused by impacts. Subsequently, microscopically inspect the encoder's solder joints on the PCB for any cracks or cold solder joints. If the encoder is internally worn or contaminated, ultrasonic cleaning with isopropyl alcohol is suggested, or alternatively, proceed with replacing the component with a compatible low-profile SMD rotary encoder."

OPERATIONAL DECISION: If quick software and external cleaning checks do not resolve the issue, consult a technician for internal diagnosis and encoder cleaning/repair. Given the complexity and scarcity of specific spare parts, in case of severe hardware failure (mechanical breakage or irreparable solder joints), device replacement might be the most practical and economical option.
