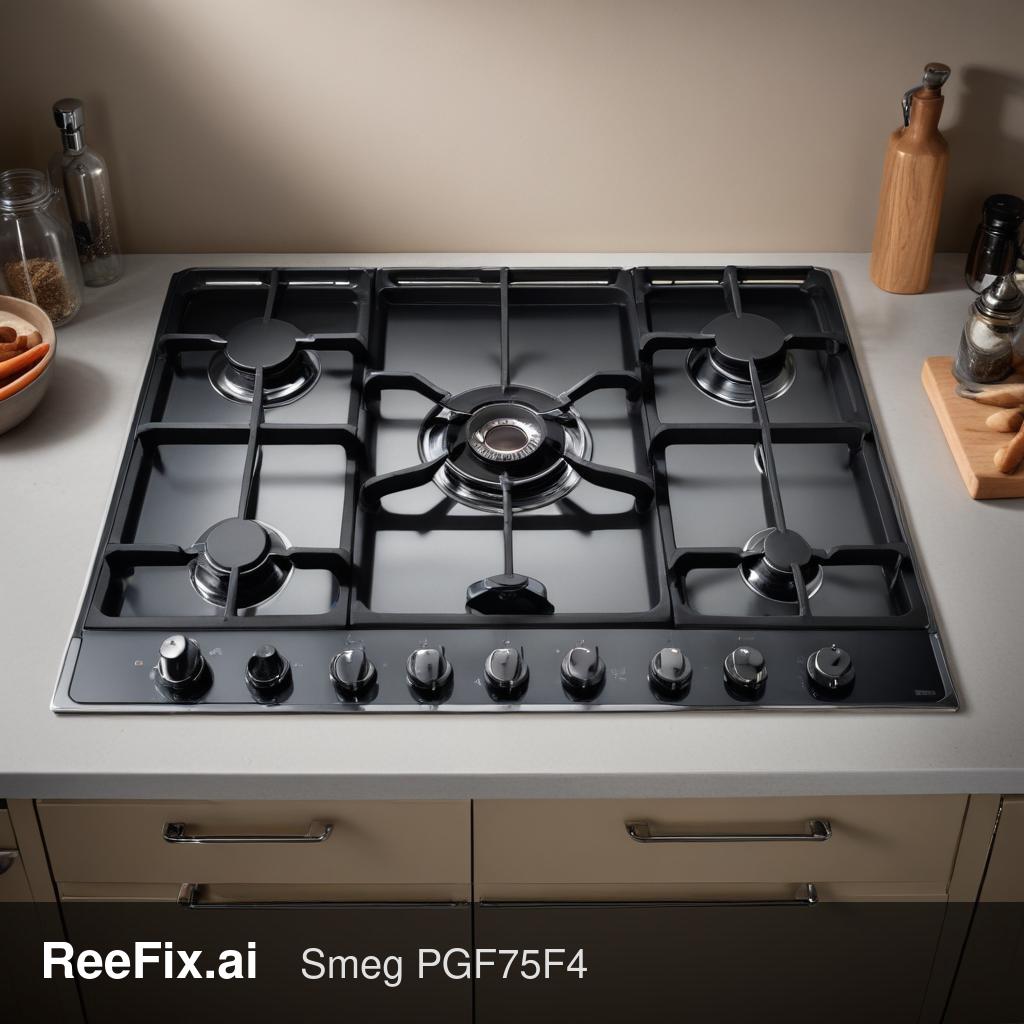

Smeg PGF75F4: Low Flame and Clogged Nozzle - Diagnosis
Validated by Luca Chia, Certified Electronic Technician
Revision of 26/06/2026
SAFETY WARNING / SERIOUS RISK. This appliance operates with critically dangerous components (Gas and 230V mains voltage). DIY repair of critical devices can be fatal and is prohibited by law. Physical intervention legally requires qualified specialized technicians to issue compliant safety certificates. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.
REAL CASE
Your Smeg PGF75F4 hob has an unusually low flame on one or more burners, or the flame even extinguishes easily. This is a common problem, and in most cases (about 65%), the cause is a partially clogged nozzle. Imagine a tiny micrometric hole, designed to dispense gas with extreme precision: a small build-up of carbonized food, detergent residue, or an overflowing liquid is enough to drastically reduce its capacity.
It often happens when: cooking with full pots that can overflow, or after vigorous cleaning where foam or liquids seep under the burner caps. Subsequent heat carbonizes these residues, creating a "plug" that chokes the gas flow. One user reported a similar problem after boiling milk, noting that the burner closest to the overflow area had a weak, yellowish flame.
GENERAL PATTERN
Here are the most probable causes and how they manifest for your Smeg PGF75F4:
| Probable Cause | Probability | Key Signals | Why It Happens | Counter-examples / Notes |
|---|---|---|---|---|
| 1. Nozzle (injector) obstruction | 60-75% | Weak and unstable flame on a single burner; dark/whitish residues; yellowish flame. | Micrometric hole reduced by encrustations (food, detergents). | If all burners have low flame since installation, less probable. |
| 2. Incorrect nozzle matching (Methane vs. LPG) | 15-25% | Extremely low flame on all burners from first use or after gas change/relocation; weak but uniform flame. | LPG nozzles have smaller holes. Using wrong nozzles unbalances the flame. | Check numerical stamping on the nozzle and Smeg PGF75F4 manual. |
| 3. Venturi tube or flame spreader obstruction | 5-10% | Yellow, unstable flame, "detaches" or produces hissing sounds; blackened pots. Limited to a single burner. | Incorrect gas/air mixture due to obstruction (dust, cobwebs, grease) or clogged flame spreader holes. | - |
| 4. Minimum adjustment (bypass) or insufficient mains pressure | < 5% | Acceptable flame at maximum but extinguishes/invisible at minimum. Pressure drop on all burners, intermittent. | Bypass screw too tight; external mains pressure problem. | - |
Safety notes: Never attempt to enlarge a nozzle hole with uncalibrated bits or non-specific needles. This risks altering the calibration and creating dangerous situations (gas leak or uncontrollable flame).
WHAT TO DO NOW
Considering that the most probable cause is a clogged nozzle, here's how to proceed:
1. Repair yourself (with caution and only for superficial obstructions):
- WARNING: Before any operation, cut off the gas supply (by closing the main tap) and disconnect the hob from the electrical power.
- Quick check: Remove the grates, caps, and flame spreaders of the affected burner. Observe the nozzle (it's a small brass cylinder in the center). Do you see dirt or encrustations?
- Superficial cleaning (if the obstruction is evident and not deep): Use a Gas jet reamer to gently clear the hole, without forcing or enlarging. DO NOT use uncalibrated pins or needles.
- Useful tools for inspection/cleaning (if you feel confident): A 7mm socket wrench may be needed to unscrew the nozzle (if necessary for a deeper cleaning). After reassembly, a Gas leak detector spray is essential to check for leaks.
- Spare parts cost: A single nozzle costs a few euros. A complete Smeg PGF75F4 Nozzle Kit (if you need to change them all or don't know which one) can cost €10-€25.
2. Contact a technician (safer and recommended choice):
- If the obstruction is not superficial, if you don't feel confident, or if you suspect more complex problems (wrong nozzles, clogged Venturi, pressure/regulation issues), call a specialized gas appliance technician.
- Output for the technician: "The Smeg PGF75F4 hob has a low flame on [specific burner/s]. I have visually checked the caps. Nozzle obstruction or non-compliance with the gas type (Methane G20 at 20 mbar) is suspected. Verification of the injector, Venturi tube, and, if necessary, adjustment of the minimum bypass on the gas tap is required."
- Estimated cost: The labor of a certified technician, including leak and safety testing, is approximately €40-€80. This is the most probable cost for resolving the problem.
3. Replace the device:
- This option is rarely necessary for a low flame/clogged nozzle problem, given the low cost of repair. It might only be considered if the hob is very old, has other major faults, or if the repair by a technician proves to be complex and expensive (e.g., faulty gas tap, but this is a rare case).
Operational decision: If the low flame is on a single burner and you suspect a superficial obstruction, you can attempt a gentle cleaning with a Gas jet reamer after cutting off the gas; otherwise, for any doubt or more extensive problem, contact a specialized technician.
Why is my Smeg PGF75F4 hob's flame low or extinguishing?
For your Smeg PGF75F4, a low or extinguishing flame is often due to a partially clogged burner nozzle, typically from carbonized food or cleaning residues.
How can I tell if my gas hob's nozzle is clogged?
Key signals include an unusually weak, yellowish flame on one or more burners, or the flame easily going out. This often follows spills or vigorous cleaning.
When should I call a technician for a low gas hob flame?
Immediately. Gas appliances are dangerous. Any issue with gas flow or flame requires a qualified technician for diagnosis and repair to ensure safety and compliance.
