Whirlpool WBO3T323 Oven Not Heating: F3 E2 Error Diagnosis

WARNING: ELECTRICAL HAZARD / HIGH VOLTAGE. This appliance operates with high voltage or residual charges. Physical intervention is extremely dangerous, and it is strongly recommended to entrust it to a qualified specialized technician to avoid electric shocks. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

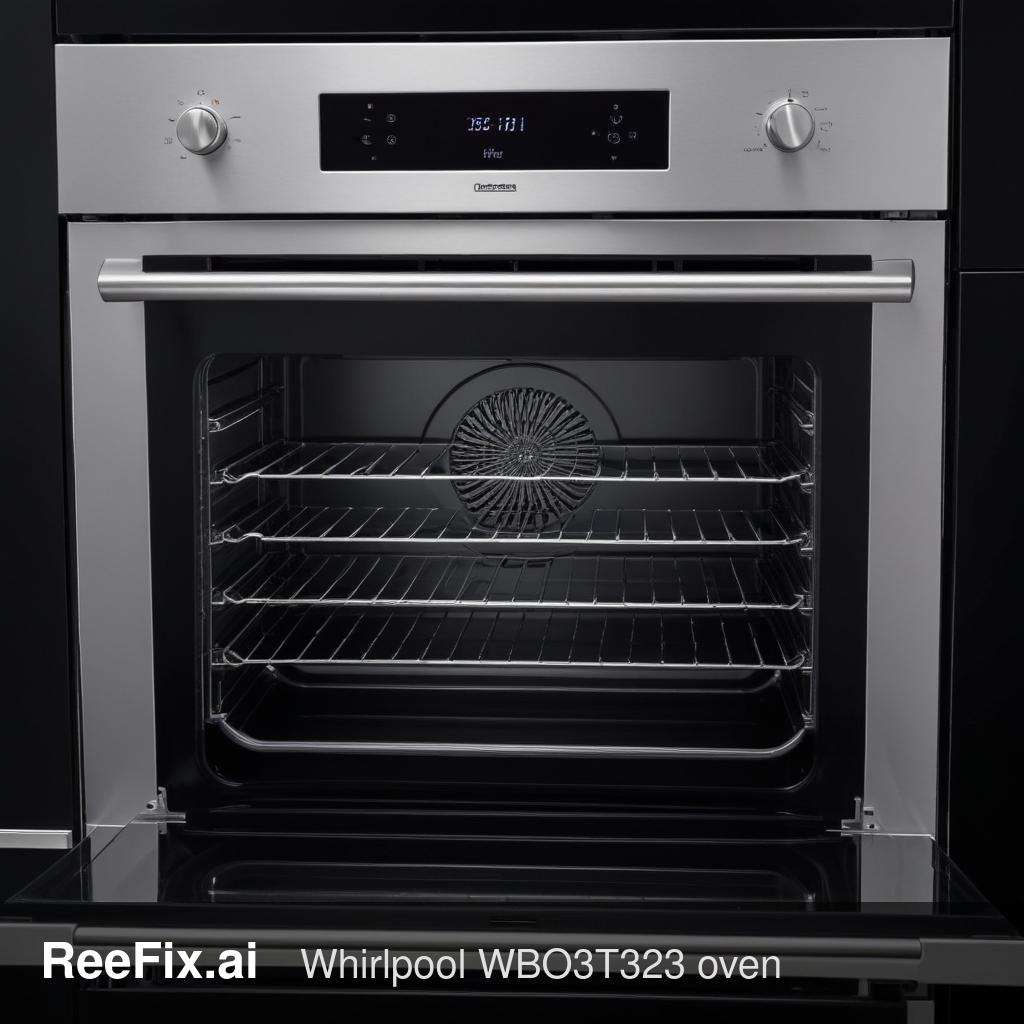

Your Whirlpool WBO3T323 oven shows error F3 E2 and is not heating. This code indicates a problem in the oven's temperature sensor circuit.

QUICK DIAGNOSIS (within 60 seconds): The most probable cause (approx. 70%) is a faulty temperature sensor (NTC thermistor). If you have a multimeter and are familiar with basic electrical work (after disconnecting power!), you can attempt verification and replacement. Otherwise, or if the checks do not resolve the issue, repair requires a technician or oven replacement.

REQUIRED TOOLS

• Digital Multimeter
• Screwdriver Set
• Wire Stripper and Crimper (may be useful for wiring)

PHASE 1: Temperature Sensor (NTC) Check

The temperature sensor is the component most frequently responsible for the F3 E2 error. The Electronic Control Board (ECB) monitors its resistance to determine the oven's internal temperature. If the resistance is out of range, the oven disables heating for safety.

1. Disconnect the oven from the electrical supply. This step is crucial for your safety.
2. Access the sensor: It is usually located inside the oven cavity, secured with two screws, or at the back. You may need to remove the oven's rear or top panel.
3. Disconnect the sensor from the wiring. Note how the wires are connected.
4. Measure resistance: Use the multimeter to measure the resistance across the sensor terminals at room temperature. A functioning NTC sensor should have a specific resistance (e.g., approximately 1080 Ohms at 25°C, but check the exact value for your model if available). If the multimeter indicates an open circuit (OL or infinite) or a short circuit (close to 0 Ohms), the sensor is faulty.

Key signs of sensor failure:

• Infinite resistance reading (open circuit) or near zero (short circuit).
• The oven turns off or does not heat at all as soon as you try to start it.
• It often happens that the sensor degrades over time due to continuous thermal stress, leading to inaccurate readings or internal circuit interruptions.

Decision: If the sensor is out of specification, the most probable solution is to replace it. You can find the replacement part here: Whirlpool WBO3T323 Oven NTC Temperature Sensor. If you do not feel confident performing this operation, call a technician.

PHASE 2: Wiring and Connections Inspection

Damaged wiring or loose connections can simulate a faulty sensor, as they prevent the control board from receiving the correct signal.

1. With power disconnected, visually inspect the wiring running from the sensor to the Electronic Control Board (ECB). Look for signs of burns, cuts, pinches, or deteriorated insulation.
2. Check connections: Ensure that the sensor connectors and those on the ECB board are secure and free from corrosion or oxidation. A loose or dirty connection can increase resistance in the circuit, misleading the control unit.
3. Continuity test (if possible): With the multimeter, check the continuity of individual wires from the sensor to the connection points on the ECB. If a wire is broken, it will need to be repaired or replaced.

Counter-examples: If the sensor has correct resistance values and the wiring is intact, it is unlikely that the problem lies here.

FINAL VERIFICATION

If the temperature sensor and its wiring are found to be intact after checks, the probability shifts towards a fault in the Electronic Control Board (ECB). This is a less common but possible cause, where the input circuit of the board that processes the sensor signal is damaged.

Operational Decision: If the sensor and wiring are OK, but the F3 E2 error persists, then the Whirlpool WBO3T323 Oven Electronic Control Board is the most probable cause. In this case, contact a qualified technician for a thorough diagnosis of the board or its replacement, given the complexity and cost of the component. If the repair cost approaches the value of a new oven, consider replacing the device.
