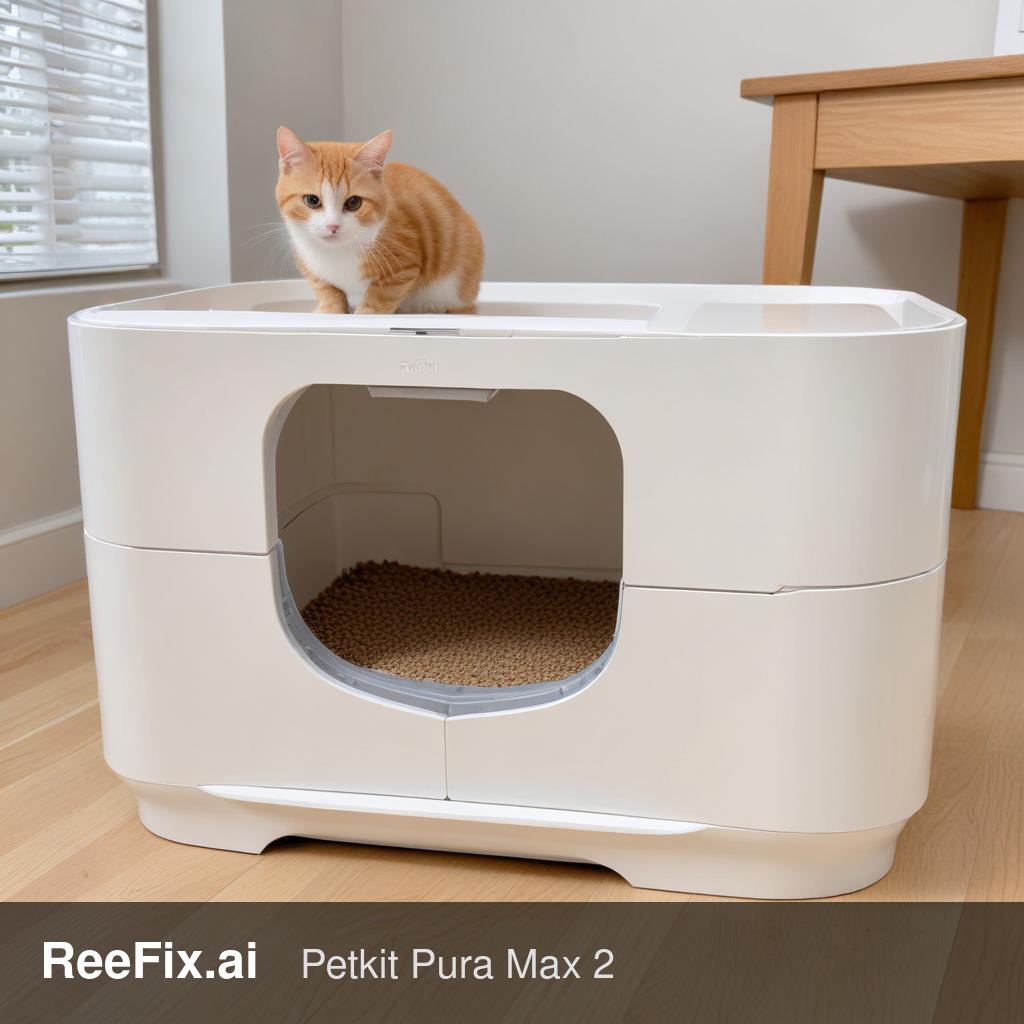

Diagnosis and Repair of Urine Leaks in Petkit Pura Max 2

WARNING: This appliance is powered by a low-voltage mains adapter (12V). Before any cleaning, disassembly, or maintenance operation, always disconnect the power supply from the 230V electrical outlet to prevent short circuits or damage to electronic components. If the physical intervention is complex, it is recommended to rely on a qualified technician for your safety. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

TECHNICAL CHECKLIST

Before proceeding, disconnect the power from the Petkit Pura Max 2.

• Visual inspection of the Cylinder Mat: Check that the mat is perfectly attached to all fastening clips (snaps) on the bottom and sides of the cylinder. Look for tears or holes caused by cat claws.
• External urine traces: Examine the outside of the rotating cylinder (ShieldBase), especially near the deodorizer housing or under the cylinder. Look for traces of dried urine or salt deposits.
• Internal base: Remove the cylinder and inspect the plastic base. Look for liquid accumulation or crystallized urine in the structural cavities and on the sliding rollers.
• Waste drawer gasket: Verify that the drawer gasket is not worn or deformed and that the drawer closes hermetically.
• Rotation rollers: Check the cylinder support rollers. They must be clean and free of encrustations that could hinder rotation.

INSPECTION RESULT

Urine leakage in the Petkit Pura Max 2 is almost always related to a containment problem inside the rotating cylinder, which allows liquid to infiltrate the base.

Causes and Probabilities:

1. Mat not properly attached or misaligned (65%): This is the most common cause. The removable mat (Cylinder Mat) is not perfectly inserted into the fastening clips (snaps/buckles). This creates gaps through which urine slides under the mat and drips into the base.
   • Key signs: Persistent ammonia smell from the base, urine traces on the lower outer part of the cylinder.
   • Often happens when: The mat is removed for cleaning and not carefully repositioned by engaging all pressure points.
2. Cat urinates very high or on the edge (20%): If the cat urinates against the side walls beyond the edge of the mat or near the entrance, the liquid can overcome physical barriers and drip into the base or near the deodorizer compartment.
   • Key signs: Urine dripping from the front entrance of the base or along the outer frame.
3. Worn or damaged silicone mat (10%): Deep scratches caused by claws or material wear can create micro-holes that allow liquids to filter through.
   • Key signs: Leaks even with an apparently intact edge seal; urine seems to filter directly through the mat.
4. Misalignment of the waste drawer gasket (5%): If the gasket is worn or the drawer is not inserted correctly, urine can leak during rotation.
   • Key signs: Accumulation of urine or wet litter in the back of the base, outside the drawer.

Tools Needed for Repair (DIY or Technician):

• Replacement mat for Petkit Pura Max (if the mat is damaged)
• Aquarium-safe silicone sealant (optional, for a permanent DIY edge seal)
• Enzymatic urine cleaner (for deep cleaning)
• 99% Isopropyl alcohol (for degreasing before sealing)
• Plastic prying tools (for gentle disassembly)

Estimated Costs:

• Spare parts: €20–€45 (mat and sealant).
• Labor (technician): €40–€80.

Operational Decision:

1. Repair yourself (High probability): If visual inspection indicates a leak due to the mat not being attached, remove it, thoroughly clean the base with an enzymatic cleaner, and reassemble the mat ensuring that every single clip is snapped into place. If you want a permanent solution, you can apply a thin layer of aquarium-safe silicone along the joining edges.
2. Contact a technician (Medium probability): If the silicone mat is torn or porous (requires replacement), if the leak persists after a resealing attempt, or if you suspect damage to electronic components (erratic weight sensors, motor problems), professional intervention is advisable.
3. Replace the device (Low probability): Consider replacement if the device is very old, if electronic damage is extensive, or if the total estimated repair cost (parts + labor) exceeds 50-60% of the cost of a new Petkit Pura Max 2.
