Garmin Instinct 3: Excessive AOD Battery Drain - Solution

⚠️ SAFETY WARNING / FIRE RISK. This device contains lithium batteries. Improper puncturing or bending during disassembly can cause explosions or flames. The intervention requires precision and the assistance of a specialized technician is recommended. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

BEFORE THE FAILURE

Your Garmin Instinct 3, with its AMOLED display, offered a nominal battery life of approximately 7 days with the Always-On Display (AOD) function active. Without AOD, the watch could last up to 18 days. Usage was standard, the battery drained predictably, and AOD worked as expected, showing time and essential data with adaptive brightness that did not excessively impact overall duration. There were no signs of abnormal overheating or sudden percentage drops.

AT THE TIME OF FAILURE

You noticed a drastic drop in battery life with AOD active. Battery duration fell well below the nominal 7 days, sometimes depleting in 2-3 days or even less. In some cases, the watch suddenly turned off with a residual charge percentage (e.g., 10-15%). The problem seems directly related to AOD activation, while with the function deactivated, battery life might still be acceptable or only slightly reduced. There were no significant impacts or exposures to unusual liquids that could justify immediate hardware damage.

AFTER THE EVENT

The diagnosis focuses on the power management of the AMOLED display in Always-On mode. Here are the most probable causes and steps to follow:

1. Unoptimized software configuration and Watch Face (50%)

   • Why: AMOLED displays consume energy for every illuminated pixel. Third-party watch faces rich in animations, colorful graphic elements, or widgets that require continuous updates (e.g., active seconds, real-time heart rate monitoring) force the processor to remain in a high activity state, preventing deep sleep power saving. This is the most common reason for excessive consumption with AOD.
   • Key signs: Abnormal consumption is more evident with specific watch faces or installed Connect IQ apps. Using a very simple predefined Garmin watch face (black background, time only), battery life partially improves.
   • Quick checks (do it yourself):
     1. Deactivate AOD for 24 hours and monitor battery life. If it returns to normal, the problem is almost certainly software/configuration.
     2. Change the watch face to a stock Garmin one, as simple as possible (black background, few data).
     3. Uninstall all third-party Connect IQ apps and watch faces you don't use.
     4. If the problem persists, try a factory reset (save data first!).
   • Often happens when: Users, attracted by appealing aesthetics, install complex watch faces without considering their energy impact, which is significant on AMOLED displays.

2. Chemical degradation of the lithium battery (30%)

   • Why: Constant AOD use doubles or triples charge/discharge cycles, stressing the battery. Over time, this increases its equivalent series resistance (ESR), making it less capable of providing power for the AMOLED display's peak demands. The power management integrated circuit (PMIC) may interpret these voltage drops as a depleted battery, even if there is still charge.
   • Key signs: The watch suddenly turns off with a visible battery percentage still remaining (e.g., 10-15%), or the case heats up abnormally during fast charging.

If your Garmin Instinct suddenly turns off during a workout or when the percentage drops below a certain threshold, the battery has lost its voltage stability under load. This behavior indicates that the cell can no longer handle the energy absorption peaks required by the system.

*   **Costs (indicative):** Replacing the [compatible replacement battery for Garmin Instinct 3](https://www.ebay.com/sch/i.html?_nkw=compatible%20replacement%20battery%20for%20Garmin%20Instinct%203&mkcid=1&mkrid=711-53200-19255-0&siteid=0&campid=5339148621&toolid=10001&mkevt=1) requires precision and restoration of the waterproof seal. The cost of the spare part is reasonable, but specialized labor and the risk of compromising waterproofing make the repair a job for a technician.

3. Firmware bug or uncalibrated brightness sensor (15%) * Why: Outdated firmware or a dirty/defective ambient light sensor can cause incorrect display brightness settings. If the watch believes it is in a very bright environment, it will set a high AOD brightness even in the dark, consuming up to 300% more than necessary. * Key signs: The screen maintains high brightness both in direct sunlight and in a dark room. * Quick checks (do it yourself): 1. Ensure that the Garmin Instinct 3 firmware is updated to the latest version available via Garmin Connect. 2. Gently clean the screen and bezel of the watch with a soft, dry cloth, as dirt or obstructions on the glass can falsify the reading of the integrated ambient light sensor. 3. Check the automatic brightness settings in the watch menu.

4. Hardware micro-leaks (5%)
   • Why: This is the least likely but most serious cause. Micro-infiltrations of humidity or acidic sweat can deposit mineral salts on the motherboard (PCB), creating parasitic conductive paths. These microscopic "short circuits" constantly drain current from the battery, regardless of the screen state.
   • Key signs: Slightly elevated consumption even with AOD deactivated, or with the screen completely off. Signs of oxidation visible only by opening the device.
   • Limit condition: Prolonged use in extremely humid environments or in contact with acidic sweat without regular cleaning.

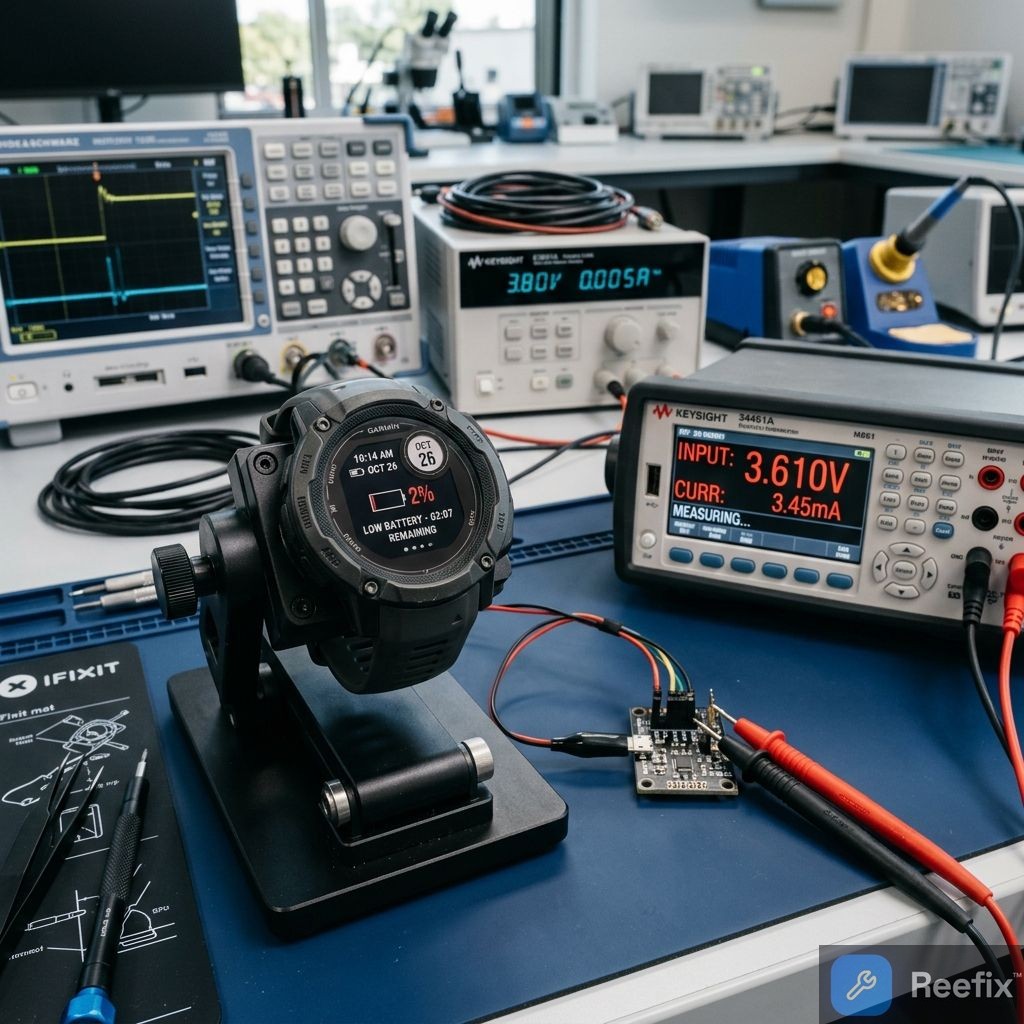

Technician Output (Synthetic Handoff): "Garmin Instinct 3 AMOLED: Excessive battery drain with AOD, battery life < 7 days. Requires current absorption analysis (sleep vs AOD), check for leaks on VDD_AMOLED, and PCB inspection for oxidation. Evaluate battery ESR and, if necessary, replace cell and restore waterproof seal. Recommended tools: watch opening tool kit and precision suction cups, precision digital multimeter for micro-currents, 99% Isopropyl alcohol for cleaning contacts and PCB, Waterproof display sealant adhesive (B-7000 or similar)."

Operational Decision: If software checks resolve the problem, proceed with use; otherwise, for battery or hardware issues, consult a specialized technician, evaluating device replacement if the repair cost is high.
