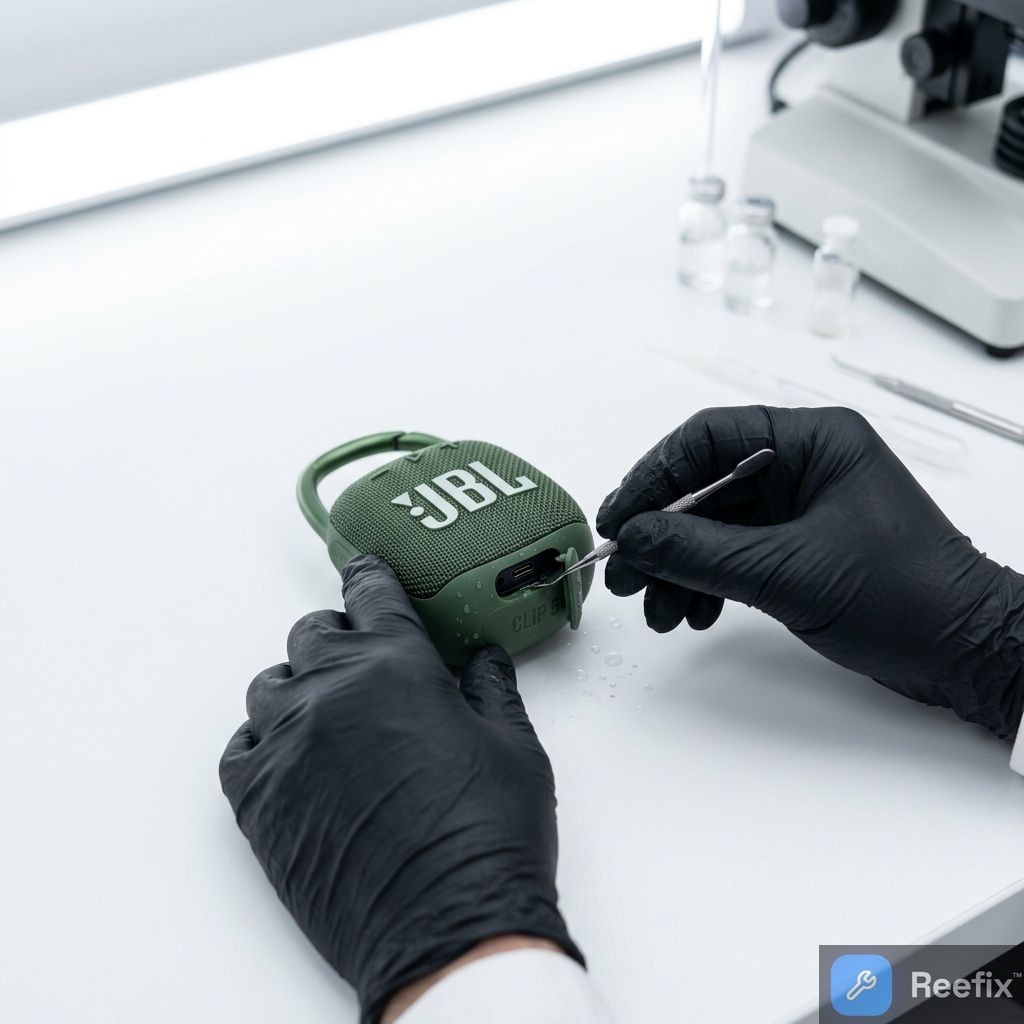

JBL Clip 5: Water in Charging Port Issue - Diagnosis

⚠️ SAFETY WARNING / FIRE RISK. This device contains lithium batteries. Improper puncturing or bending during disassembly can cause explosions or flames. The intervention requires precision and the assistance of a specialized technician is recommended. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

IF the JBL Clip 5 speaker does not charge, but shows no visible signs of damage in the USB-C port (55% probability)

• Key signs: The charging LED does not light up or flashes red immediately after use in water. The USB-C port appears clean, with no obvious residue or discoloration. The device may have been submerged or exposed to humidity, but no immediate charging attempt was made.
• Why it happens: The JBL Clip 5's USB-C port is designed to be waterproof internally, but the external cavity can retain water. Protection circuits (PMIC) detect this moisture as a resistance anomaly and block charging to prevent damage. This is a safety mechanism.

THEN:

This situation indicates simple moisture retention. You can attempt a self-resolution with caution.

1. Natural drying: Leave the JBL Clip 5 in a dry, well-ventilated place for at least 48-72 hours. Avoid direct heat sources (hairdryers, radiators) that could deform plastics or damage the battery.
2. Accelerated drying (optional): For faster dehydration, you can apply a small amount of Isopropyl Alcohol for electronics 99.9% inside the USB-C port using a cotton swab or a syringe without a needle. Isopropyl alcohol binds with water and accelerates its evaporation without leaving conductive residues. Allow to dry for a few hours after application.
3. Verification: After drying, try connecting the charger. If the problem is resolved, charging should start normally.

• Estimated costs (DIY): €5-€15 (for isopropyl alcohol, if not already owned).
• Intervention difficulty (DIY): Low.

IF the USB-C port shows signs of corrosion, discoloration, blackened/bent pins, or the cable does not insert correctly (30% probability)

• Key signs: Inspecting the port with good light and a magnifying glass, you notice greenish, whitish, or dark deposits, and the small internal gold pins appear damaged. The charging cable does not engage or engages with difficulty, and the device shows no signs of life or the charging LED does not light up.
• Why it happens: This often happens when attempting to charge the device while the port is still wet, perhaps with salt water or chlorinated water. The 5V voltage triggers rapid electrolysis and galvanic corrosion, destroying the delicate contacts of the connector.

THEN:

Pin corrosion is physical damage that cannot be resolved by drying alone. The intervention of a specialized technician is required.

1. Do not attempt to charge: Avoid further charging attempts, as you could cause greater damage to the logic board.
2. Technical evaluation: Contact an electronic repair shop. The technician will need to inspect the pins under a microscope to confirm corrosion.
3. Connector replacement: The only solution is the physical replacement of the USB-C replacement connector for JBL Clip 5 via SMD microsoldering. This operation requires specific equipment (hot air station, precision soldering iron, Precision screwdriver kit for electronics) and advanced skills to avoid compromising the motherboard and restoring the IP67 seal.

• Estimated costs (technician): Replacement part €5-€15 + Labor €40-€70.
• Intervention difficulty (technician): High.

IF the JBL Clip 5 does not turn on, turns off by itself, hisses, or shows erratic behavior even after prolonged drying (10% probability)

• Key signs: The device exhibits complex malfunctions that go beyond simple charging. Status LEDs act abnormally, sound is distorted or absent, or the battery drains quickly. This indicates that water may have breached the internal sealing barrier.
• Why it happens: Failure of internal gaskets, micro-cracks from drops, or aging of materials can allow water to reach the logic board (PCB) and power circuits or the battery. This causes oxidation, short circuits, and thermal instability of the battery.

THEN:

In this scenario, the damage is likely extensive and requires in-depth professional diagnosis.

1. In-depth diagnosis: Consult a specialized technician. It will be necessary to disassemble the device to visually inspect the motherboard and battery for traces of liquid, oxidation, or damaged components. A USB-C Multimeter Tester can help determine if the charging circuit is completely blocked.
2. Output for technician: "The JBL Clip 5 device has suffered liquid exposure with probable infiltration beyond the USB-C port. A visual inspection of the main PCB and battery is required to assess oxidation or short circuits on SMD components and the integrity of the lithium cell and BMS. Specifically check the PMIC and CC1/CC2 lines. If necessary, proceed with washing with isopropyl alcohol or replacing damaged components, including the battery."
3. Economic evaluation: Repair may become uneconomical if multiple components are involved (motherboard, battery). The labor cost for a complex diagnosis and repair can exceed the residual value of the device.

• Estimated costs (technician): From €70 to €120+ (complex diagnosis, possible battery or PCB component replacement).
• Intervention difficulty (tecnico): Very high.

CONCLUSION

For a JBL Clip 5 with water in the charging port issue:

1. If there are no visible signs of damage (55%): Try natural or accelerated drying with isopropyl alcohol. If it resolves, you have repaired it yourself at minimal cost.
2. If there are clear signs of corrosion or damaged pins (30%): Contact a technician for USB-C connector replacement via microsoldering. Repair is feasible but requires specialized skills.
3. If the device exhibits erratic behavior or does not turn on after drying (10%): Contact a technician for an in-depth diagnosis of any internal damage to the PCB or battery. If the repair cost is too high (>€70-€100), consider replacing the device.

If the problem persists after drying and no obvious damage is seen, but the device does not charge, contact a technician; if the repair cost exceeds €70-€100, consider replacing the device.

Prevention tips

The JBL Clip 5's USB-C port, while internally sealed, is exposed. To prevent future failures:

• Never charge if wet: Always wait until the port is completely dry before connecting the charging cable.
• Rinse with fresh water: After use in sea water or a pool, gently rinse the USB-C port with clean fresh water and allow it to dry completely.
• Periodic inspection: Visually check the USB-C port for dirt or residue buildup that could retain moisture.
