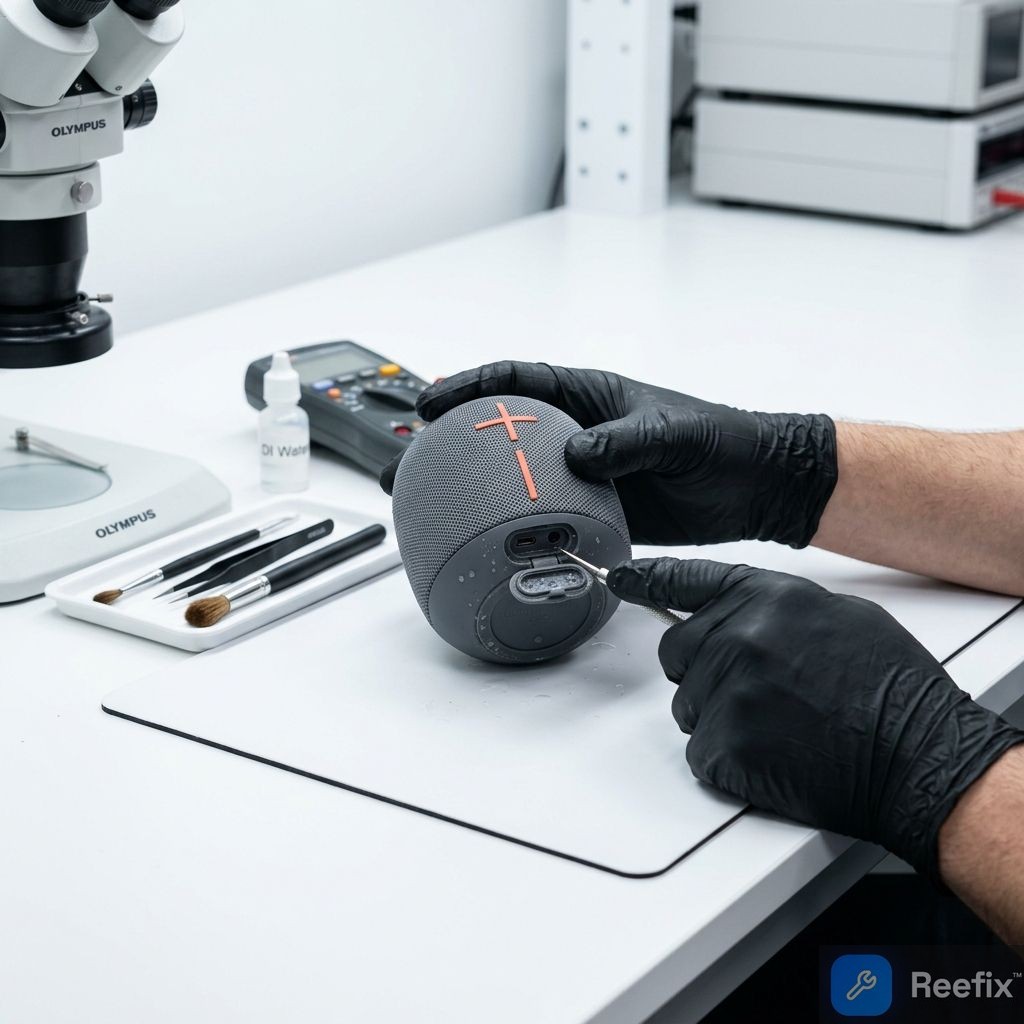

Ultimate Ears Wonderboom 3: Water Ingress Repair Diagnosis

⚠️ SAFETY WARNING / FIRE RISK. This device contains lithium batteries. Improper puncturing or bending during disassembly can cause explosions or flames. Intervention requires precision and the assistance of a specialized technician is recommended. ReeFix provides this diagnosis EXCLUSIVELY for educational and informational purposes.

MAIN CAUSE

The Ultimate Ears Wonderboom 3, designed to float and be water-resistant (IP67 certification), sinks or takes on water due to a breach in the integrity of its sealed internal cavity. The cause is almost always a failure of the watertight seals, which allows water to replace air, increasing its specific weight. Water, especially if salty or chlorinated, rapidly triggers electrochemical corrosion on circuits, short circuits, and serious risks to the lithium battery.

Probability and Indicators:

1. Deformation or wear of the USB rubber flap (50%):
   • Why: Prolonged exposure to UV, chlorine, or salt water can degrade the rubber, compromising the sealing of the charging port. Hydrostatic pressure pushes water inside.
   • Key signals: The rear flap does not close flush or remains open, shows worn edges, visible cracks, or residues (limescale/sand) preventing a hermetic seal.
   • Often happens when: The device is frequently used in aquatic environments (pool, sea) without adequate cleaning or protection.

If you notice that your Wonderboom no longer charges or the cable connection is unstable, the cause is often oxidation of the internal pins of the USB port, which remained exposed to moisture precisely due to the deterioration of this gasket.

2. Tearing or detachment of passive radiators (30%):

   • Why: Passive radiators are sealed to the chassis with flexible adhesives. Strong impacts or drops can cause micro-fractures or detachments of the rubber suspension, creating an entry point for water.
   • Key signals: Distorted or "crackling" sound even at low volume. Visible cracks or detachments along the edge of the side membranes.
   • Limit condition: Repeated drops or significant impacts on hard surfaces drastically increase this risk.

3. Micro-fracture of the polycarbonate chassis from impact (15%):

   • Why: Violent impacts can generate micro-cracks in the chassis, invisible to the naked eye, which compromise waterproofing. Thermal shocks (e.g., hot speaker immersed in cold water) can amplify water suction through these fissures.
   • Key signals: Obvious signs of dents or deep scratches on the outer casing, especially at corners or joint points.

4. Minor or contributing causes (5%):

   • Failure of the factory structural adhesive along the central joint line of the half-shells, often due to manufacturing defects or repeated thermal stress.

VERIFICATION

Given the nature of the problem and the risks associated with the lithium battery, direct user verifications are limited and must be performed with extreme caution.

Quick checks (non-invasive):

1. Charging flap inspection: Visually and tactilely check the rubber flap of the Micro-USB port. Ensure it is not deformed, cut, or that there are no residues preventing a perfect seal.
2. Chassis visual examination: Look for signs of impact, deep scratches, or obvious cracks on the outer casing. Pay attention to the areas around the passive radiators and along the joint lines.
3. Float test (NOT with device on or with water already present): If the device is dry and shows no signs of internal infiltration, a brief test in fresh water (max 10 cm) can confirm if it sinks. If it sinks, the integrity is compromised.

Professional checks (require technician):

• Pneumatic seal test: A specialized laboratory can pressurize the empty chassis to precisely locate the leak (e.g., immersion in isopropyl alcohol to detect bubbles).
• Internal inspection: Opening the chassis to assess the extent of liquid damage on the motherboard (corrosion, burnt components) and the safety of the lithium battery.
• Tools for technician:
  • iFixit precision screwdriver and spudger kit
  • B-7000 waterproof sealing glue
  • 99% Isopropyl Alcohol

OPERATIONAL OUTCOME

Repairing a device with water ingress is complex and often uneconomical for a consumer speaker like the Wonderboom 3, given the high probability of extensive damage to internal electronics and the need to restore a reliable IP67 seal.

• If the USB flap is visibly damaged (50% probability):

  • DIY repair: Not recommended. Although replacing the flap is theoretically feasible, opening the device to check for internal damage and subsequent IP67 resealing require professional equipment and expertise. The risk of not restoring waterproofing or causing further damage is high.
  • Consult a technician: This is the most sensible choice to attempt a repair. The technician will assess internal damage (oxidation cleaning, battery check) and restore the seal. However, labor and spare parts costs might approach the price of a new device.
  • Replace the device: High probability that this is the most cost-effective solution, especially if the damage is extensive or the repair cost exceeds 50-60% of the value of a new Wonderboom 3 (new approximately 80-100€).

• If passive radiators are torn/detached or the chassis is micro-fractured (45% probability):

  • DIY repair: Absolutely not recommended. This type of damage requires complete opening, replacement or restoration of membranes/chassis, and professional hermetic resealing.
  • Consult a technician: Necessary for accurate diagnosis and an attempt at repair. Replacing drivers or chassis parts is expensive and complex.
  • Replace the device: Strongly recommended. Repair costs (labor, spare parts like Ultimate Ears Wonderboom spare parts) will almost certainly exceed the device's residual value.

Technician output (synthetic handoff): "The Ultimate Ears Wonderboom 3 device is taking on water and has lost buoyancy. I suspect IP67 seal failure, likely the Micro-USB flap or passive radiators. Request liquid damage check on PCB, battery status, and pneumatic seal test to locate the leak and restore sealing."

If after a quick visual inspection you do not identify trivial causes and the device is not working, consult a technician for an economic evaluation or directly consider replacing the device.
